The flow rate y (m3 / min) in a device used for air-quality measurement depends on the pressure drop x (in. of water) across the device's filter. Suppose that for x values between 5 and 20, the two variables are related according to the simple linear regression model with true regression line y =- 2.12 + .095x. a. What is the expected change in flow rate associated with a 1-in. increase in pressure drop? Explain. b. What change in flow rate can be expected when pressure drop decreases by 5 in.? c. What is the expected flow rate for a pressure drop of 10 in.? A drop of 15 in.? d. Suppose ( = .025 and consider a pressure drop of 10 in. What is the probability that the observed value of flow rate will exceed .835? That observed flow rate will exceed .840? e. What is the probability that an observation on flow rate when pressure drop is 10 in. will exceed an observation on flow rate made when pressure drop is 11 in.?
Added by Julie C.
Step 1
increase in pressure drop, we use the coefficient of x in the regression model, which is 0.095. Therefore, the expected change in flow rate for a 1-in. increase in pressure drop is 0.095 m3/min. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Sri K and 81 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

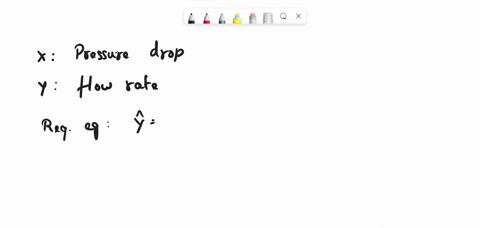

The flow rate in a device used for air quality measurement depends on the pressure drop x (inches of water) across the device's filter. Suppose that for x values between 5 and 20, these two variables are related according to the simple linear regression model with a population regression line y = -0.14 + 0.093x. (a) What is the mean flow rate for a pressure drop of 15 in.? What is the mean flow rate for a pressure drop of 20 in.? (b) What is the average change in flow rate associated with a 1-inch increase in pressure drop?
Adi S.
The relationship between flow rate and pressure drop has been investigated in a chromatography column with the following parameters: - Length: 7.5 cm - Diameter: 30 cm - Particle size: 150 um The data generated is shown below: Dp (mL/min) (bar) 0.33 1.14 1.70 2.10 3.02 3.63 Define the concept of critical velocity (UcRIT): b) Using the data above, identify the critical velocity for this column design. Select a suitable operating velocity for the column and calculate the pressure drop you would expect to observe at this velocity. [20] You are asked to scale up the column design, increasing its capacity by quadrupling the column diameter. How might this affect critical velocity and why? Consequently, how might the design or operating parameters need to be modified? [16]
Shyam P.

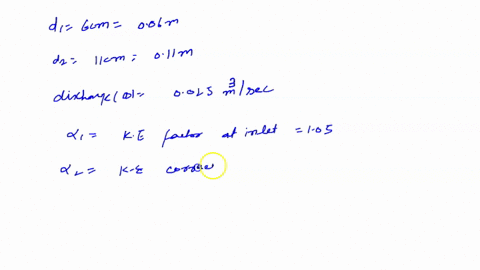

A diffuser in a pipe flow is basically a slow expansion of the pipe diameter, which slows down the fluid velocity and increases the pressure (the Bernoulli effect). Water at room temperature flows with a flowrate of 0.025 m³/s through a horizontal diffuser in which the pipe diameter increases gradually from D₁ = 6 to D₂ = 11 cm. The irreversible head loss through the diffuser is estimated to be 0.45 m. The flow is turbulent, and the kinetic energy correction factors at both the inlet and outlet of the diffuser are assumed to be 1.05. (a) Calculate the pressure difference P₂ - P₁ in units kPa. (b) Calculate the change in energy grade line (AEGL) and the change in hydraulic grade line (AHGL). Does EGL go up or down? Does HGL go up or down? (c) Conceptual question: How would the EGL and HGL lines look if we had no losses in our system?
Sri K.
