The following data refer to a water wheel comprising a series of flat plates mounted on the periphery of the wheel radially. Diameter of the wheel up to centre of plates is 1.22 m, diameter of jet is 168 mm. Head at the beginning of the nozzle is 18.3 and speed of the wheel is 120 rpm .Take coefficient of velocity at the nozzle as 0.97. Determine i. Efficiency of the water wheel ii. Work done on the water wheel iii. Power delivered to the wheel
Added by Lisa B.
Step 1
97\), \(g = 9.81 \, \text{m/s}^2\), and \(h = 18.3 \, \text{m}\). \[ v_j = 0.97 \times \sqrt{2 \times 9.81 \times 18.3} \] Show more…
Show all steps
Close
Your feedback will help us improve your experience
Adi S and 82 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

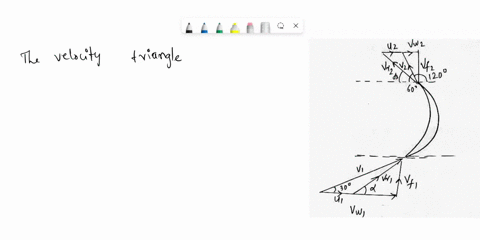

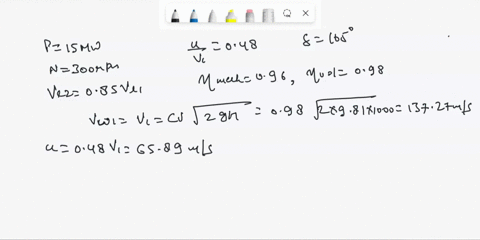

Pelton turbine deliver 15 MW under a head of 1000 m when running at 300 rpm. The blade speed ratio is 0.48 and Cv = 0.98. The jet is turned through 165° by the bucket. The relative velocity is reduced by 15% by blade friction. Determine the hydraulic efficiency. Also calculate the wheel diameter and nozzle diameter. The mechanical and volumetric efficiencies are 0.96 and 0.98. Also find the number of buckets.
Adi S.
A Pelton wheel is working under a gross head of 400 m. The water is supplied through a penstock of diameter 1m and length 4 km from the reservoir to the Pelton wheel. The coefficient of friction for the penstock is given as 0.008. The jet of water if diameter 150 mm strikes the buckets of the wheel and gets deflected through an angle of 165 0 , The relative velocity of water at the outlet is reduced by 15% due to friction between the inside surface of the bucket and water. If the velocity of the buckets is 0.45 times the jet velocity at the inlet and mechanical efficiency as 85%, compute: Power given to runner Shaft power Hydraulic efficiency and overall efficiency
