The graph shows the voltage across and the current through single circuit element connected to an ac generator. 99 V 0.14 s 2.8 A Determine the frequency of the generator A) 0.14 Hz B) 7.14 Hz C) 125 Hz D) 25.0 Hz E) 50.0 Hz Determine the rms voltage across this element A) 70.0 V B) 49.5 V C) 112 V D) 140 V E) 170 V
Added by Stephen L.
Step 1
The problem provides the peak voltage \( V_0 = 99 \, \text{V} \) and the peak current \( I_0 = 2.8 \, \text{A} \). Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

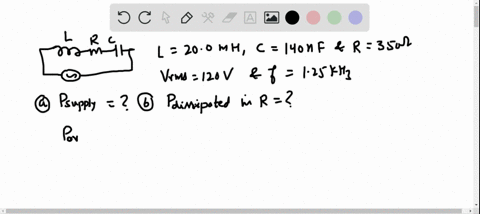

31.26. In a scries $L-R-C$ circuit, the components have the following values: $L=20.0 \mathrm{mH}, C=140 \mathrm{nF},$ and $R=350 \Omega$ . The generator has an rms voltage of 120 $\mathrm{V}$ and a frequency of 1.25 $\mathrm{kHz}$ Determine (a) the power supplied by the generator, and (b) the power dissipated in the resistor. equal to $R / Z$ . (Hint: Use the phasor diagram; see Fig. $31.13 b . )$ (b) Show that for any ac circuit, not just one containing pure resistance only, the average power delivered by the voltage source is

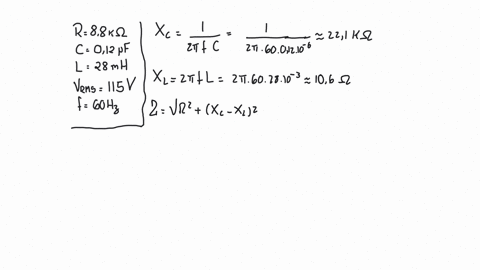

Find the rms voltage across each element in an $R L C$ circuit with $R=8.8 \mathrm{k} \Omega, C=0.12 \mu \mathrm{F},$ and $L=28 \mathrm{mH} .$ The generator supplies an rms voltage of 115 $\mathrm{v}$ at a frequency of 60.0 $\mathrm{Hz}$ .
