The inlet diameter D for the pipe contraction show is 40 cm. Water at 20Ā° C is flowing in the pipe. Ignore gravity. The inlet pressure at A is 120 kPa gage. It is observed that when the flow rate is 0.17 mĀ³/s, cavitation takes place in the contraction. Under these conditions, what should be the diameter d?
Added by Nancy R.
Close
Step 1
To determine the velocity, we can use the Bernoulli's equation, which states that the sum of the pressure energy, kinetic energy, and potential energy per unit volume of a fluid remains constant along a streamline. Since we are ignoring gravity, the potential Show moreā¦
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 99 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The 3.0 -cm-diameter water line in Figure $\mathrm{P} 13.40$ splits into two 1.0 -cm-diameter pipes. All pipes are circular and at the same elevation. At point $\mathrm{A}$, the water speed is $2.0 \mathrm{m} / \mathrm{s}$ and the gauge pressure is $50 \mathrm{kPa}$. What is the gauge pressure at point B?

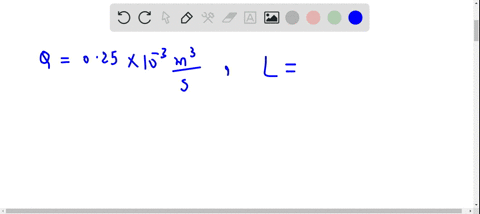

Water flows at $0.25 \mathrm{L} / \mathrm{s}$ through a $10-\mathrm{m}$ -long garden hose $2.5 \mathrm{cm}$ in diameter that is lying flat on the ground. The temperature of the water is $20^{\circ} \mathrm{C} .$ What is the gauge pressure of the water where it enters the hose?

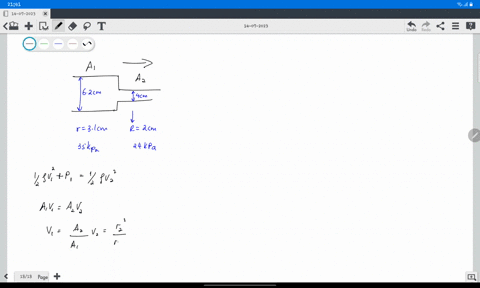

A 6.2 cm diameter pipe gradually narrows to 4.0 cm. When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 35.0 kPa and 24.0 kPa, respectively. What is the volume rate of flow?
