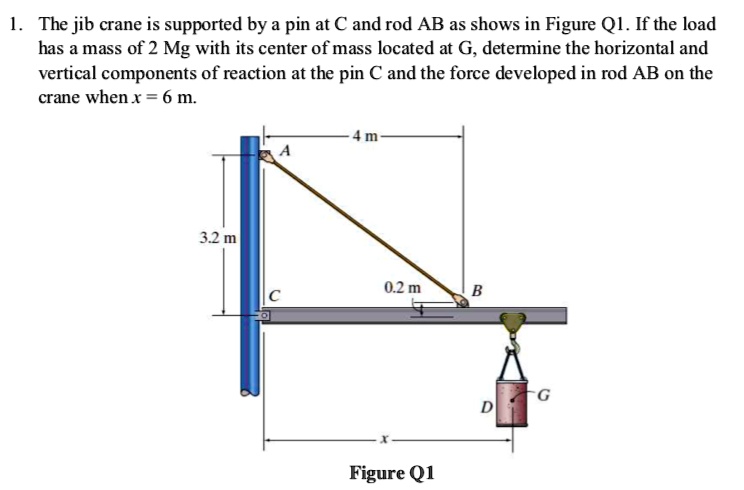

1. The jib crane is supported by a pin at C and rod AB as shows in Figure Q1. If the load has a mass of 2 Mg with its center of mass located at G, determine the horizontal and vertical components of reaction at the pin C and the force developed in rod AB on the crane when x = 6 m.
Added by Bobby G.
Close
Step 1
The weight (W) is the mass (m) times the acceleration due to gravity (g). Given that the mass is 2 Mg (or 2000 kg) and g is approximately 9.81 m/s^2, the weight is W = m*g = 2000 kg * 9.81 m/s^2 = 19620 N. Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The jib crane is supported by a pin at C and rod AB. The rod can withstand a maximum tension of 40 kN. If the load has a mass of 2 Mg with its center of mass located, determine the maximum allowable distance and the corresponding horizontal and vertical components of reaction at C.
Adi S.

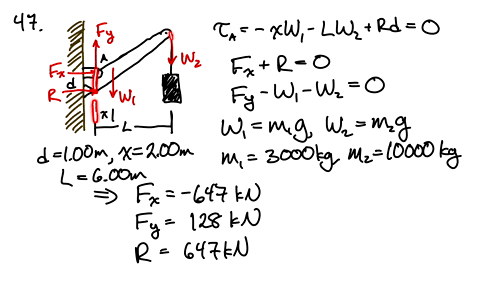

A crane of mass $m_{1}=3000 \mathrm{kg}$ supports a load of mass $m_{2}=10000 \mathrm{kg}$ as shown in Figure $\mathrm{P} 12.47$ . The crane is pivoted with a frictionless pin at $A$ and rests against a smooth support at $B$ . Find the reaction forces at (a) point $A$ and (b) point $B$ .
The dimensions of a jib crane, which is manufactured by the Basick Co., are given in the figure. If the crane has a mass of $800 \mathrm{kg}$ and a center of mass at $\mathrm{G}$, and the maximum rated force at its end is $F=15 \mathrm{kN}$, determine the reactions at its bearings. The bearing at $A$ is a journal bearing and supports only a horizontal force, whereas the bearing at $B$ is a thrust bearing that supports both horizontal and vertical componcnts.
