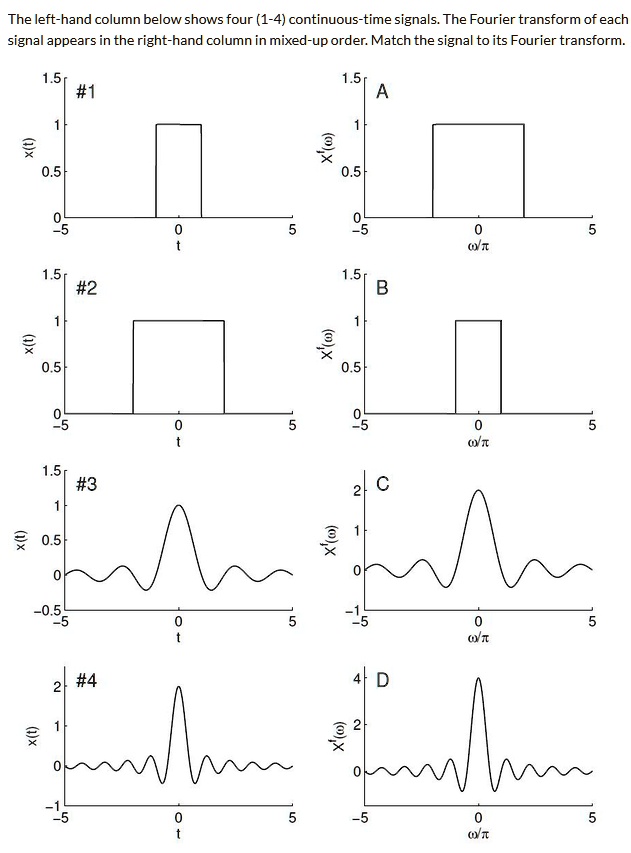

The left-hand column below shows four (1-4) continuous-time signals. The Fourier transform of each signal appears in the right-hand column in mixed-up order. Match the signal to its Fourier transform.
Added by Robert D.
Close
Step 1
Signal #1 is a constant signal with a value of 1.5. The Fourier transform of a constant signal is an impulse (Dirac delta function) at frequency 0. So, the Fourier transform of signal #1 is the one with an impulse at 0, which is B. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 68 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
a) Find out the Fourier transform of the following signal using time-shifting property. x(t) = e^{-2(t-10)}u(t - 10) b) Compute the convolution between the following two signals using Fourier transform x(t) = e^{-2t}u(t) h(t) = e^{-5t}u(t) + ͆(t)
Madhur L.
Fourier Transform Pairs Table 1 e^(-at)u(t) 1/(a + jw) a > 0 2 e^(at)u(-t) 1/(a - jw) a > 0 3 e^(-a|t|) 2a/(a^2 + w^2) a > 0 4 te^(-at)u(t) 1/(a + jw)^2 a > 0 5 t^ne^(-at)u(t) n!/(a + jw)^(n+1) a > 0 6 delta(t) 1 7 1 2pi delta(w) 8 e^(jw0t) 2pi delta(w - w0) 9 cos w0t pi[delta(w - w0) + delta(w + w0)] 10 sin w0t jpi[delta(w + w0) - delta(w - w0)] 11 u(t) pi delta(w) + 1/jw 12 sgn t 2/jw 13 cos w0t u(t) pi/2[delta(w - w0) + delta(w + w0)] + jw/(w0^2 - w^2) 14 sin w0t u(t) pi/2j[delta(w - w0) - delta(w + w0)] + w0/(w0^2 - w^2) 15 e^(-at) sin w0t u(t) w0/((a + jw)^2 + w0^2) a > 0 16 e^(-at) cos w0t u(t) (a + jw)/((a + jw)^2 + w0^2) a > 0 17 rect(t/tau) tau sinc(wt/2) 18 W/pi sinc(Wt) rect(w/2W) 19 delta(t/tau) tau/2 sinc^2(wt/4) 20 W/2pi sinc^2(Wt/2) delta(w/2W) 21 sum_{n=-infinity}^{infinity} delta(t - nT) w0 sum_{n=-infinity}^{infinity} delta(w - nw0) w0 = 2pi/T 22 e^(-t^2/2sigma^2) sigma sqrt(2pi)e^(-sigma^2w^2/2)
Adi S.
Complete Table of Fourier Transform Pairs Function f(t) Fourier Transform, F(Δ) Definition of Fourier Transform Definition of Inverse Fourier Transform f(t) F(Δ) = ∫ f(t)e^{-jωt} dt f(t - t_0) F(ω)e^{-jωt_0} f(αt) (1/|α|)F(ω/α) f'(t) F(t) sgn(t) cos(ω_0t) sin(ω_0t) e^{jω_0t}
