Question

The length of the 220 V AC mains line supplying a 2.5 kW washing machine is 12 m. If a 2.5 mm² insulated copper conductor is used for this line, check whether the conductor cross-section is appropriate according to the voltage drop limit specified in the electrical indoor installation regulation. Note: The copper wire conductivity coefficient is 56 siemens (m/Ωmm²).

          The length of the 220 V AC mains line supplying a 2.5 kW washing machine is 12 m. If a 2.5 mm² insulated copper conductor is used for this line, check whether the conductor cross-section is appropriate according to the voltage drop limit specified in the electrical indoor installation regulation. Note: The copper wire conductivity coefficient is 56 siemens (m/Ωmm²).

Show more…

Added by Kim S.

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
The length of the 220 V AC mains line supplying a 2.5 kW washing machine is 12 m. If a 2.5 mm² insulated copper conductor is used for this line, check whether the conductor cross-section is appropriate according to the voltage drop limit specified in the electrical indoor installation regulation. Note: The copper wire conductivity coefficient is 56 siemens (m/Ωmm²).
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty Danielle Fairburn
Ivan Kochetkov verified

Sheh Lit Chang and 57 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.

*

Recommended Videos

-
you-have-some-copper-wire-that-you-want-to-connect-from-a-power-supply-to-a-150-omega-load-the-wire-

You have some copper wire that you want to connect from a power supply to a $150-\Omega$ load. The wire is a standard 24 -gauge (diameter $0.51 \mathrm{~mm}$ ). What's the maximum length of wire you can use without its resistance exceeding $1 \%$ of the load resistance? Note: You're finding the total length of wire to and from the load.

Essential College Physics

an-electrical-dowei-line-is-desi-ened-tohave-resistance-of-75-mf-per-kilometer-of-length-if-the-power-line-to-be-made-of-copper-what-should-the-diameter-the-copper-cabl-meet-the-equired-spec-82496

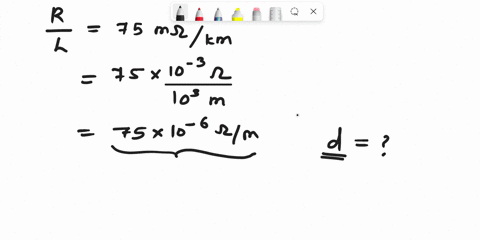

An electrical power line is designed to have a resistance of 75 m̦ per kilometer of length. If the power line is to be made of copper, what should the diameter of the copper cable be to meet the required specification? (Here the resistivity of copper is 1.72E-8 ̦ m.) 8.55 mm 17.1 mm 45.1 mm 32.3 mm 25.5 mm

Adi S.

in-household-wiring-copper-wire-with-cross-sectional-area-of-25-mathrmmm2-is-often-used-find-the-res

In household wiring, copper wire with cross sectional area of $2.5 \mathrm{~mm}^{2}$ is often used. Find the resistance of a $24.0 \mathrm{~m}$ length of this wire.

University Physics with Modern Physics In SI Units


*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,482 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,213 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,687 solutions

*

Transcript

-
00:02 In this question, we have a power supply that is connected to a 150 oom resistor, and then the rest of the circuit is connected by copper wire, and then we want to find the maximum length of the wire so that the resistance of the wire is less than 1 % of the load resistance.
00:29 So to do this question, we'll be using...
00:37 R equals to rl divided by a, okay, and then a is pi r square, which is one quarter, pi d square.
00:49 Okay, so we want to find the length of the wire...
Need help? Use Ace
Ace is your personal tutor. It breaks down any question with clear steps so you can learn.
Start Using Ace
Ace is your personal tutor for learning
Step-by-step explanations
Instant summaries
Summarize YouTube videos
Understand textbook images or PDFs
Study tools like quizzes and flashcards
Listen to your notes as a podcast
Continue solving this problem
Create a free account to:
  • View full step-by-step solution
  • Ask follow-up questions with Ace AI
  • Save progress and study later
Continue Free
Numerade

Get step-by-step video solution
from top educators

Continue with Clever
or



By creating an account, you agree to the Terms of Service and Privacy Policy
Already have an account? Log In

A free answer
just for you

Watch the video solution with this free unlock.

Numerade

Log in to watch this video
...and 100,000,000 more!


EMAIL

PASSWORD

OR
Continue with Clever
