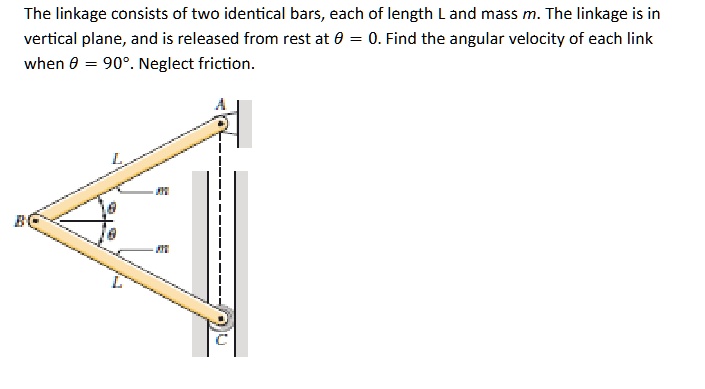

The linkage consists of two identical bars, each of length L and mass m. The linkage is in vertical plane, and is released from rest at $\theta = 0$. Find the angular velocity of each link when $\theta = 90^\circ$. Neglect friction. B L L A C
Added by Abigail V.
Close
Step 1
The system consists of two identical bars, each of length L and mass m. The linkage is in a vertical plane. It is released from rest at $\theta = 0$. We need to find the angular velocity of each link when $\theta = 90^\circ$. Friction is neglected. Step 2: Define Show more…
Show all steps
Your feedback will help us improve your experience
Animesh Raj and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

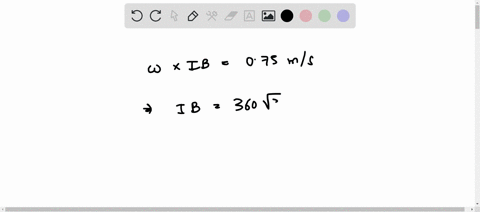

Roller $B$ of the linkage has a velocity of $0.75 \mathrm{m} / \mathrm{s}$ to the right as the angle $\theta$ passes $60^{\circ}$ and bar $A B$ also makes an angle of $60^{\circ}$ with the horizontal. Locate the instantaneous center of zero velocity for bar $A B$ and determine its angular velocity $\omega_{A B}$
Animesh R.
The linkage consists of two $6-\mathrm{kg}$ rods $A B$ and $C D$ and a 20 -kg bar $B D .$ When $\theta=0^{\circ}, \operatorname{rod} A B$ is rotating with an angular velocity $\omega=2 \operatorname{rad} / \mathrm{s}$ If $\operatorname{rod} C D$ is subjected to a couple moment of $M=30 \mathrm{N} \cdot \mathrm{m},$ determine $\omega_{A B}$ at the instant $\theta=90^{\circ}$

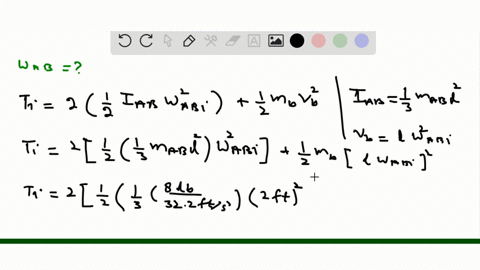

The linkage consists of two 8 -lb rods $A B$ and $C D$ and a $10-1 b$ bar $A D .$ When $\theta=0^{\circ}, \operatorname{rod} A B$ is rotating with an angular velocity $\omega_{A B}=2 \mathrm{rad} / \mathrm{s}$. If $\operatorname{rod} C D$ is subjected to a couple moment $M=15 \mathrm{Ib} \cdot \mathrm{ft}$ and bar $A D$ is subjected to a horizontal force $P=20$ lb as shown, determine $\omega_{A B}$ at the instant $\theta=90^{\circ}$
