The liquour you are concentrating by evaporation is produced at 5kg/s coming at 300K. The steam is available saturated at 376K and its latent heat at the temperature is 2249 kJ/kg. The condensation temperature for the first effect and second effects are 359k and 325k which have their latent heat of steam as 2293kJ/kg and 2377 kJ/kg respectively. The evaporator is to evaporate 80% of the solution by mass. The overall coefficient of heat transfer for the first and second effect can be taken as 75 J/kg K and 30 J/kg K respectively. Assume the condensate leaves at condensation temperature and specify the number of 2m length tubes required if each has a 20 mm diameter. Also specify the economy of the reactor.
Added by Darnell C.
Step 1
Given that the liquor is produced at 5 kg/s and 80% of it is to be evaporated, the mass of liquor to be evaporated per second is: \[ \text{Mass to be evaporated} = 5 \, \text{kg/s} \times 0.80 = 4 \, \text{kg/s} \] Show more…
Show all steps
Your feedback will help us improve your experience
Cheryl Glor and 71 other Chemistry 102 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Heat-Transfer Coefficient in Single-Effect Evaporator. A feed of 4535 kg/h of a 2.0 wt% salt solution at 311 K enters continuously a single-effect evaporator and is being concentrated to 3.0%. The evaporation is at atmospheric pressure, and the area of the evaporator is 69.7 square meters. Saturated steam at 383.2 K is supplied for heating. Since the solution is dilute, it can be assumed to have the same boiling point as water. The heat capacity of the feed can be taken as cp = 4.10 kJ/kg-K. Calculate the amounts of vapor and liquid product and the overall heat-transfer coefficient U.
Sri K.

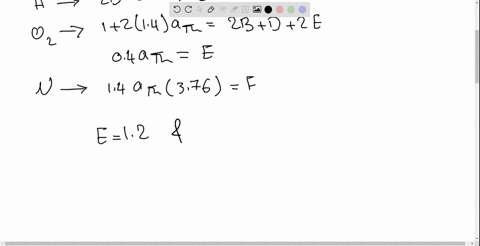

Liquid ethyl alcohol $\left(\mathrm{C}_{2} \mathrm{H}_{5} \mathrm{OH}(\ell)\right)$ at $25^{\circ} \mathrm{C}$ is burned in a steady-flow combustion chamber with 40 percent excess air that also enters at $25^{\circ} \mathrm{C}$. The products leave the combustion chamber at $600 \mathrm{K}$. Assuming combustion is complete, determine the required volume flow rate of the liquid ethyl alcohol, to supply heat at a rate of $2000 \mathrm{kJ} / \mathrm{s}$. At $25^{\circ} \mathrm{C}$ the density of liquid ethyl alcohol is $790 \mathrm{kg} / \mathrm{m}^{3},$ the specific heat at a constant pressure is $114.08 \mathrm{kJ} / \mathrm{kmol} \cdot \mathrm{K},$ and the enthalpy of vaporization is $42,340 \mathrm{kJ} / \mathrm{kmol}$.

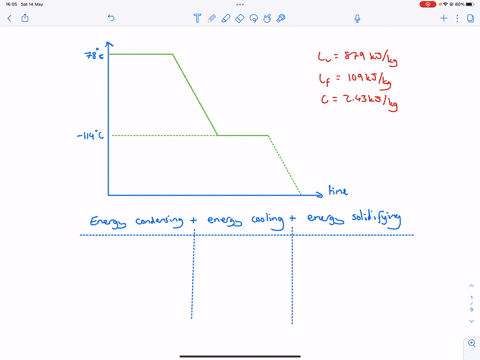

Ethyl alcohol has a boiling point of 78.0°C, a freezing point of -114°C, a latent heat of vaporization of 879 kJ/kg, a latent heat of fusion of 109 kJ/kg, and a specific heat of 2.43 kJ/kg K. How much energy must be removed from 5.01 kg of ethyl alcohol that is initially a gas at 78.0°C so that it becomes a solid at -114°C?
