Question

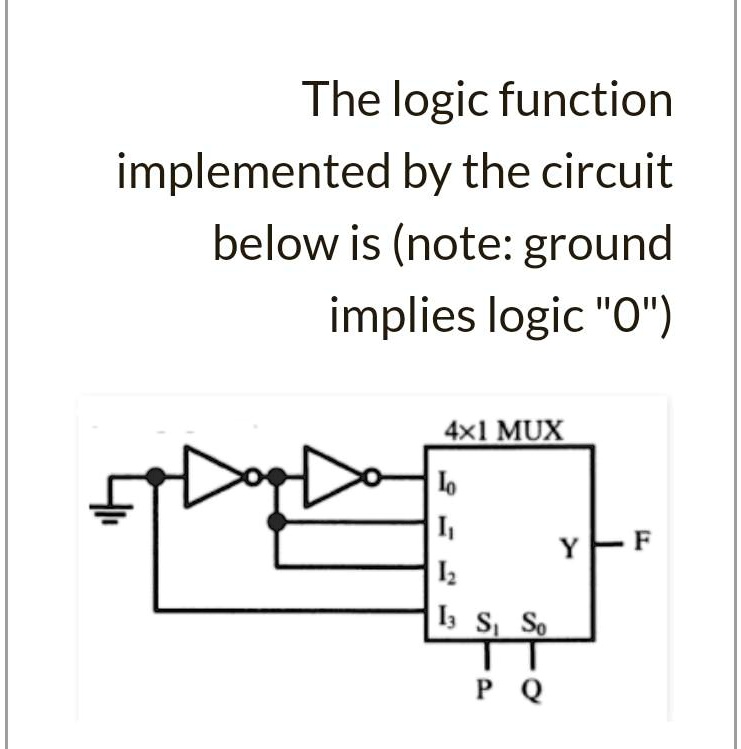

The logic function implemented by the circuit below is (note: ground implies logic "0")

          The logic function
implemented by the circuit
below is (note: ground
implies logic "0")

The logic function
implemented by the circuit
below is (note: ground
implies logic "0")

Added by Rhonda C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Paul Gabriel

Step 1

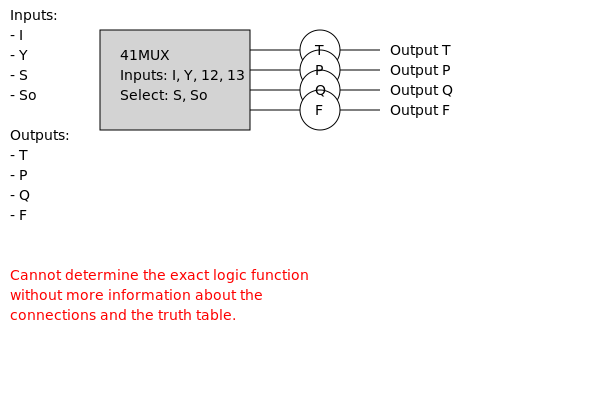

The inputs are P, Q, S1, and S0. The output is F. The 4:1 multiplexer (MUX) has 4 input lines, 2 selection lines, and 1 output line. The selection lines decide which input to forward to the output. If the selection line value is 0 0, the first input line is Show more…
