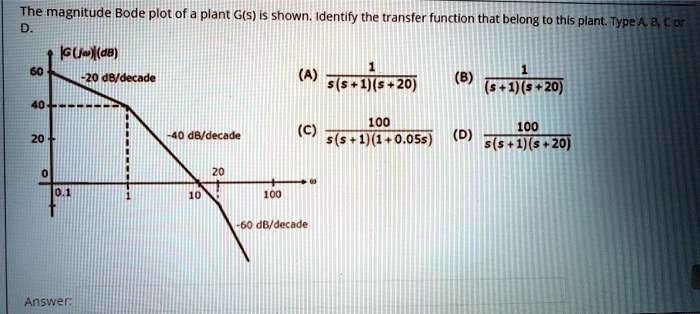

The magnitude Bode plot of a plant G(s) is shown. Identify the transfer function that belong to this plant. Type A, B, C or D. |G(jw)|(dB) -20 dB/decade -40 dB/decade -60 dB/decade (A) 1 / (s(s+1)(s+20)) (B) 1 / ((s+1)(s+20)) (C) 100 / (s(s+1)(1+0.05s)) (D) 100 / (s(s+1)(s+20))
Added by Alex M.
Close
Step 1
- The problem states that the magnitude Bode plot has a slope of 720 dB/decade. This is an unusually high slope, and it's likely a typographical error. Typically, slopes in Bode plots are in multiples of 20 dB/decade. Let's assume the slope is 60 dB/decade, Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 76 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the transfer function H(w) with the Bode magnitude plot shown below. H(dB) 20 -20 dB/decade 0 -20 2 20 100 w (rad/s) H(w) = (2 + jw) / ((20 + jw)(100 + jw)) H(w) = 100(2 + jw) / ((20 + jw)(100 + jw)) H(w) = 100(2 + jw) / ((20 + jw)(10 + jw)) H(w) = 1000(2 + jw) / ((20 + jw)(100 + jw))
Madhur L.
Using the Bode plot shown below, estimate the frequency response to the following inputs: a) u(t) = 3 cos 4t b) u(t) = 0.5 sin 40t c) u(t) = 10 cos 400t After doing the above, derive the transfer function for the system that has this Bode plot.
Sri K.
Example 3: Find the Bode log magnitude and phase angle plot for the transfer function, TF = 200(s + 20) / [s(2s + 1)(s + 40)] = 100(s/20 + 1) / [s(s/0.5 + 1)(s/40 + 1)], k=100, zero at s=-20, pole at s=0, -0.5, -40
