Question

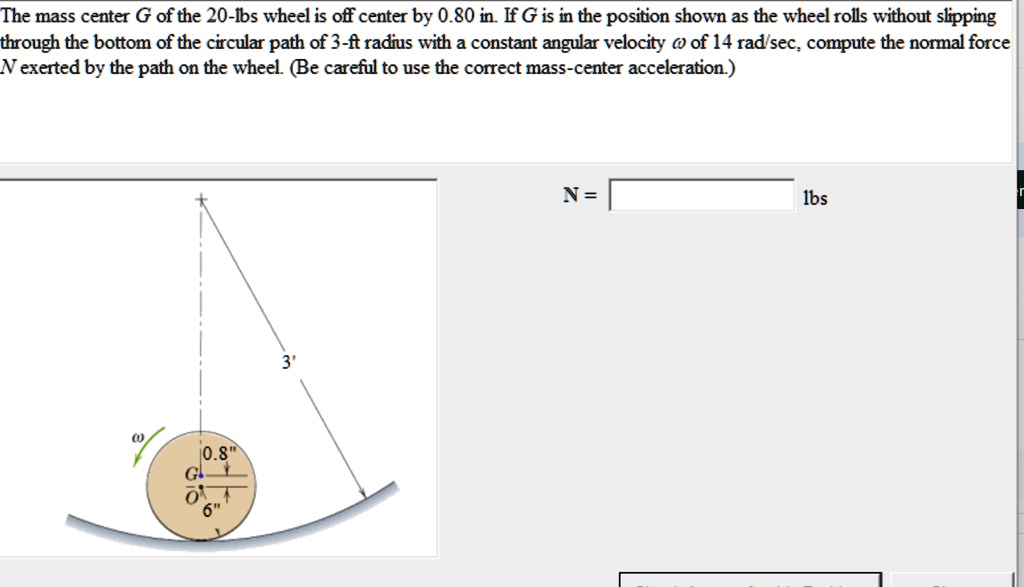

The mass center G of the 20-lbs wheel is off center by 0.80 in. If G is in the position shown as the wheel rolls without slipping through the bottom of the circular path of 3-ft radius with a constant angular velocity $\omega$ of 14 rad/sec, compute the normal force N exerted by the path on the wheel. (Be careful to use the correct mass-center acceleration.) N = lbs

Name: the mass center g of the 20 lbs wheel is off center by 080 in if g is in the position shown as the wheel rolls without slipping through the bottom of the circular path of 3 ft radius with a 67864
Uploaded: 2021-01-29T01:13:44-08:00
Duration: 1 min 19 s
Channel: Narayan Hari
Description: the mass center g of the 20 lbs wheel is off center by 080 in if g is in the position shown as the wheel rolls without slipping through the bottom of the circular path of 3 ft radius with a 67864

          The mass center G of the 20-lbs wheel is off center by 0.80 in. If G is in the position shown as the wheel rolls without slipping through the bottom of the circular path of 3-ft radius with a constant angular velocity $\omega$ of 14 rad/sec, compute the normal force N exerted by the path on the wheel. (Be careful to use the correct mass-center acceleration.)
N = lbs

the mass center g of the 20 lbs wheel is off center by 080 in if g is in the position shown as the wheel rolls without slipping through the bottom of the circular path of 3 ft radius with a 67864

Added by Christopher -.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Narayan Hari

01/29/2021

Step 1

- Weight of the wheel, $W = 20$ lbs - Mass of the wheel, $m = W/g = 20/32.2$ slugs (where $g = 32.2$ ft/s$^2$ is the acceleration due to gravity) - Offset of the mass center G from the geometric center O, $OG = 0.80$ in $= 0.80/12$ ft - Radius of the wheel, $r = Show more…
