'The no-load current of a transformer is 5.0 A at 0.3 power factor when supplied 230-V, 50-Hz. The number of turns 0n the primary winding is 200. Calculate (i) the core loss (ii) the magnetising current. Answer keys [345 W; 4.77 A]'
Added by Mike D.
Step 1
0 \, \text{A} \) - Power factor, \( \text{pf} = 0.3 \) - Supply voltage, \( V = 230 \, \text{V} \) - Frequency, \( f = 50 \, \text{Hz} \) - Number of turns on the primary winding, \( N_1 = 200 \) Show more…
Show all steps
Close
Your feedback will help us improve your experience
Narayan Hari and 97 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The no-load current of a transformer is $4 \mathrm{~A}$ at $0.25 \mathrm{pf}$ when supplied at $250 \mathrm{~V}$, $50 \mathrm{~Hz}$. The number of turns on the primary winding is 200. Calculate (i) rms value of flux in the core, (ii) core loss, and (iii) magnetising current.
Single-Phase Transformers
Construction
A $25 \mathrm{kVA}$ transformer has 500 turns on the primary and 50 turns on the secondary winding. The primary is connected to a $3000 \mathrm{~V}, 50 \mathrm{~Hz}$ supply. Find the full-load primary and secondary currents, the secondary $\mathrm{emf}$ and the maximum flux in the core. $[8.33 A, 83.3 \mathrm{~A}, 300 \mathrm{~V}, 27 \mathrm{mWb}]$

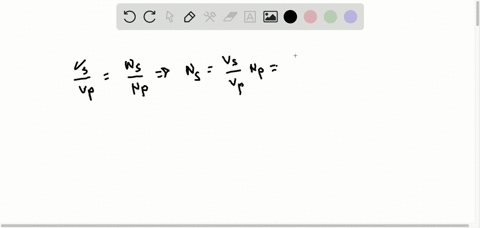

The primary coil of a transformer has 150 turns. It is connected to a $120-\mathrm{V}$ source. Calculate the number of turns on the secondary coil needed to supply the following voltages. a. $625 \mathrm{V}$ b. $35 \mathrm{V}$ c. $6.0 \mathrm{V}$
