Question

The op amp in Figure 2 has $R_1 = 100 \text{ k}\Omega$, $R_a = 100 \Omega$, $A = 100,000$. Find the differential voltage $v_d$ and the output voltage $v_o$.

          The op amp in Figure 2 has $R_1 = 100 \text{ k}\Omega$, $R_a = 100 \Omega$, $A = 100,000$.
Find the differential voltage $v_d$ and the output voltage $v_o$.
The op amp in Figure 2 has R1 = 100 kΩ, Ra = 100 Ω, A = 100,000. Find the differential voltage vd and the output voltage vo.

Added by Christopher P.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture

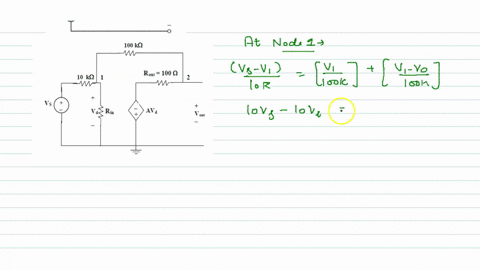

The op amp in Figure 2 has R_(i)=100kOmega ,R_(a)=100Omega ,A=100, 000. Find the differential voltage v_(d) and the output voltage v_(0). Show full calculation. The op amp in Figure 2 has Ri=100 k,Ra= 100Q,A=100 000. Find the differential voltage ua and the output voltage Vo 10k02 100k:2 WWW + 1mV Vo Figure2
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty Jennifer Stoner
Danielle Fairburn verified

Madhur L and 78 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
a-741op-amp-shown-in-the-circuit-given-below-has-an-open-loop-voltage-gain-of-60000-input-resistance-of-2-mo2-and-an-output-resistance-of-145-0-calculate-the-output-voltage-vo-in-the-op-amp-07895

A 741 op amp shown in the circuit given below has an open-loop voltage gain of 60000, input resistance of 2 MOhm, and an output resistance of 145 Ohm. Calculate the output voltage vo in the op amp circuit. The output voltage of the op amp is mV.

Madhur L.
the-op-amp-in-fig-545-has-r_i100-mathrmk-omega-r_o100-omega-a100000-find-the-differential-voltage--2

The op amp in Fig. 5.45 has $R_{i}=100 \mathrm{k} \Omega$ $R_{o}=100 \Omega, A=100,000 .$ Find the differential voltage $v_{d}$ and the output voltage $v_{o}$

Fundamentals of Electric Circuits

the-op-amp-in-fig-545-has-r_i100-mathrmk-omega-r_o100-omega-a100000-find-the-differential-voltage-v_

The op amp in Fig. 5.45 has $R_{i}=100 \mathrm{k} \Omega$ $R_{o}=100 \Omega, A=100,000 .$ Find the differential voltage $v_{d}$ and the output voltage $v_{o}$

Fundamentals of Electric Circuits

*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,271 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,939 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,909 solutions
*

Transcript

-

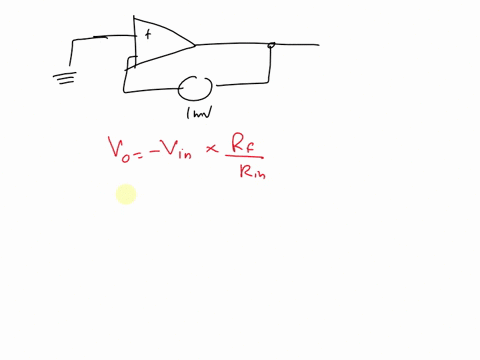

00:01 Hello students, in this question a 741 operational amplifier is connected.
