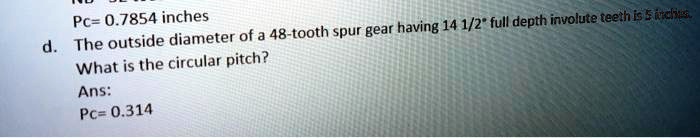

Pc= 0.7854 inches d. The outside diameter of a 48-tooth spur gear having 14 1/2" full depth involute teeth is 5 inches. What is the circular pitch? Ans: Pc=0.314
Added by Timothy H.
Close
Step 1
The formula for circular pitch (Pc) is Pc = πd/N, where d is the pitch diameter and N is the number of teeth. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.
Compute the pitch angle, in degrees, of a bevel gear given the pinion's number of teeth of 14 and 42 teeth on the gear.
A gearset consists of a 16-tooth pinion driving a 40-tooth gear. The diametral pitch is 2, and the addendum and dedendum are 1/P and 1.25/P respectively. The gears are cut using a pressure angle of 20°. Compute the circular pitch, center distance, and radius of the base circle. Determine the contact ratio of the gearset and if interference will be a problem. If this is the case, recommend a solution to the problem.
