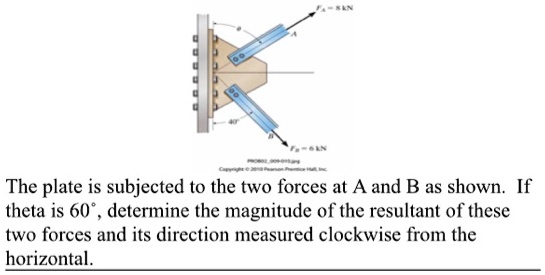

FA = 8 kN A ? 40° B FB = 6 kN The plate is subjected to the two forces at A and B as shown. If theta is 60°, determine the magnitude of the resultant of these two forces and its direction measured clockwise from the horizontal.
Added by Robert T.
Close
Step 1
The horizontal component of the force at A is F_A*cos(theta) and the vertical component is F_A*sin(theta). Similarly, for the force at B, the horizontal component is F_B*cos(theta) and the vertical component is F_B*sin(theta). Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 96 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

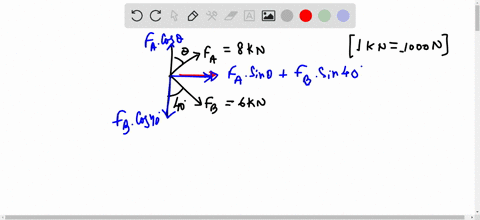

Determine the angle $\theta$ for connecting member $A$ to the plate so that the resultant force of $\mathbf{F}_{A}$ and $\mathbf{F}_{B}$ is directed horizontally to the right. Also, what is the magnitude of the resultant force?
Pritesh R.

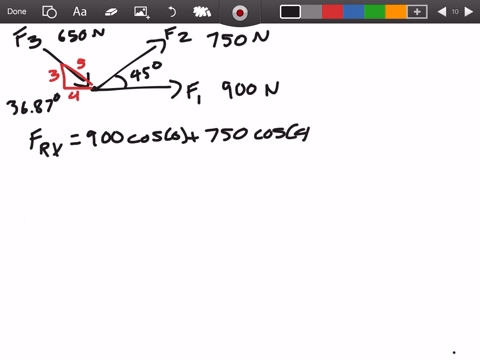

Determine the magnitude of the resultant force acting on the plate and its direction, measured counterclockwise from the positive $x$ axis.
