The region from the origin to the elastic limit on an applied force versus elongation graph for a typical metal under tension is referred to as the proportional region breaking region ultimate strength region elastic region plastic region
Added by Michelle S.
Close
Step 1
Step 1: The region from the origin to the elastic limit on an applied force versus elongation graph for a typical metal under tension is referred to as the elastic region. Show more…
Show all steps
Your feedback will help us improve your experience
Aparna Shakti and 83 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The stress-strain graph for a metal wire is as shown in the figure. In the graph, the region in which Hooke's law is obeyed, the ultimate strength and fracture points are represented by:(a) $\mathrm{OP}, \mathrm{R}, \mathrm{S}$ (b) $\mathrm{OQ}, \mathrm{S}, \mathrm{T}$ (c) $\mathrm{OP}, \mathrm{S}, \mathrm{T}$ (d) $\mathrm{OQ}, \mathrm{R}, \mathrm{S}$
PROPERTIES OF BULK MATTER
Mechanical Properties of Solids

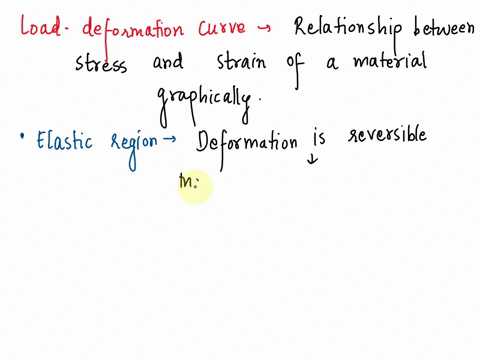

Define the load-deformation curve and use it to describe any injury. Be sure to include the terms elastic region, plastic region, elastic limit, ultimate yield point when describing the load-deformation curve.
Madhur L.

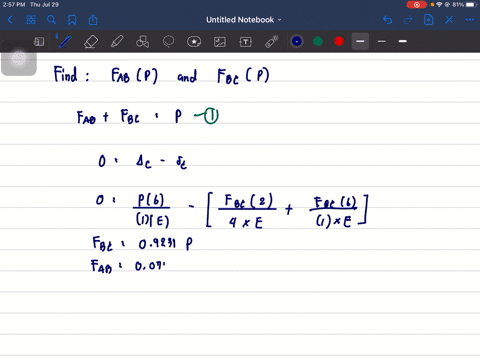

The force P is applied to the bar, which is composed of an elastic perfectly plastic material. Construct a graph to show how the force in each section $A B$ and $B C$ (ordinate) varies as $P$ (abscissa) is increased. The bar has cross-sectional areas of 1 in $^{2}$ in region $A B$ and 4 in $^{2}$ in region $B C,$ and $\sigma_{Y}=30 \mathrm{ksi}$.
