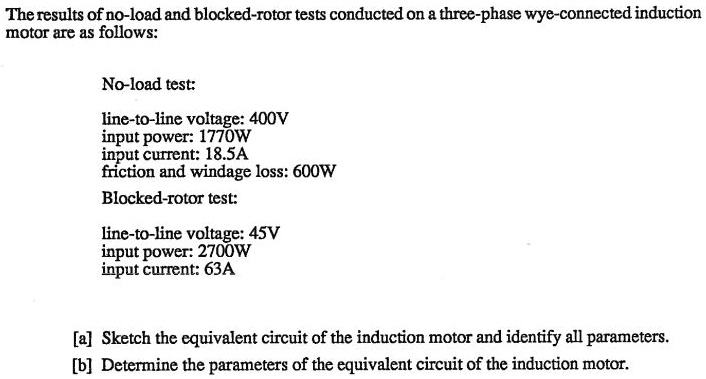

The results of no-load and blocked-rotor tests conducted on a three-phase wye-connected induction motor are as follows: No-load test: line-to-line voltage: 400V input power: 1770W input current: 18.5A friction and windage loss: 600W Blocked-rotor test: line-to-line voltage: 45V input power: 2700W input current: 63A [a] Sketch the equivalent circuit of the induction motor and identify all parameters. [b] Determine the parameters of the equivalent circuit of the induction motor.
Added by Daniel S.
Close

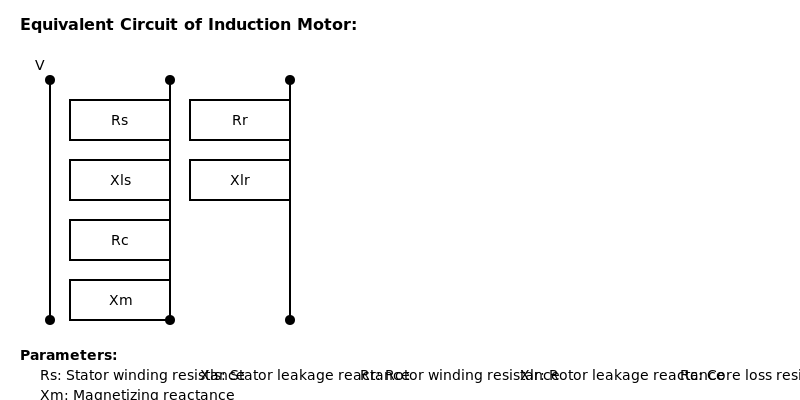

Step 1
These components are essential for analyzing the motor's performance under various conditions. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 97 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

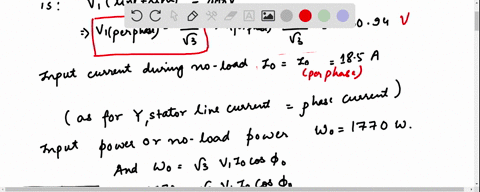

The result of the no load test on a three phase wye connected induction motor are as follows: line to line voltage = 400 V; Input power = 1770 W; Input current = 18.5 A; friction and windage loss = 600 W. determine the magnetizing reactance per phase.
Aparna S.
The results of the no-load and blocked rotor tests on a 3-phase Y-connected Machine A, a 40hp, 60Hz, 460V induction motor with a rated current of 57.8A, are as follows: No-load test: V = 460V Input power = 5664W Input current = 32.7A Locked rotor test: Line-to-line voltage = 36.2V Input power = 2573W Input current = 58A Frequency = 15Hz DC Vdc = 12V Idc = 59A a) Stator resistance b) Rotational loss c) Starting torque for this machine d) Slip at Max torque (Smax) e) How much external resistance is added (referred to stator resistance) when the Smax at d is increased or decreased to 0.95
Sri K.

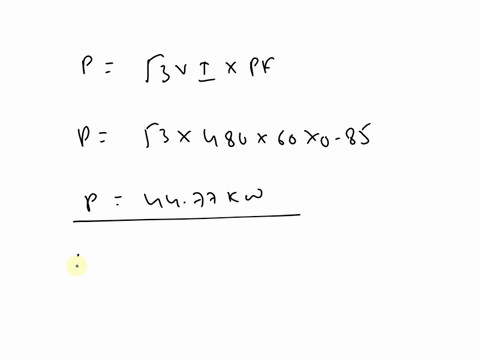

A 480V, 60Hz, 50 hp, 3-phase induction motor is drawing 60A at 0.85 power factor lagging. The stator copper losses are 2 kW, and the rotor copper losses are 700W. The friction and windage losses are 600W, the core losses are 1800W, and the stray losses are negligible. Find: a) The air gap power (PAG) b) The power converted (Pconv) c) The output power (Pout) d) The efficiency of the motor
Madhur L.
