6 - The segment of wire in Figure carries a current of I , where the radius of the circular arc is R . Determine the magnitude and direction of the magnetic field at the origin. a) B = ??I / 8R b) B = ??I / R c) B = 3??I / 8R d) B = ??I / 4R e) B = 3??I / 4R
Added by Melissa G.
Close
Step 1
0 \, A\) is the current, \(R = 0.03 \, m\) is the radius, and \(\theta = \frac{\pi}{2}\) is the angle made by the circular arc. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 78 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

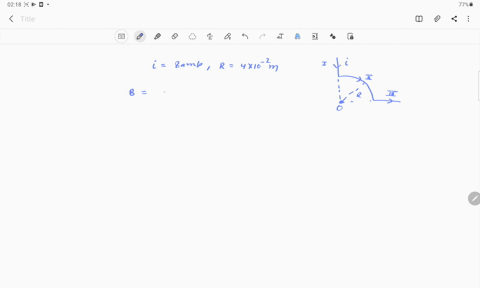

The segment of wire in the figure carries a current of I=8.00 A, where the radius of the circular arc is R=4.00 cm. Determine the magnitude and direction of the magnetic field at the origin. Give your answer in μT. (take π=3, and thus μ₀ = 12x10-7 H/m) 90º
Mahipal K.
The wire in the figure carries a current $i$ and contains a circular arc of radius $R$ and angle $\pi / 2$ and two straight sections that are mutually perpendicular and, if extended, would intersect the center, $C,$ of the arc. What is the magnetic field at point $C$ due to the wire? a) $B=\frac{\mu_{0} i}{2 R}$ b) $B=\frac{\mu_{0} i}{4 R}$ c) $B=\frac{\mu_{0} i}{6 R}$ d) $B=\frac{\mu_{0} i}{8 R}$ e) $B=\frac{\mu_{0} i}{12 R}$
The segment of wire in Figure $\mathrm{P} 30.9$ carries a current of $I=5.00 \mathrm{~A}$, where the radius of the circular arc is $R=$ $3.00 \mathrm{~cm} .$ Determine the magnitude and direction of the magnetic field at the origin.
