The signal level at the input of the amplifier is 120 mV, and the noise level is 6 mV. Calculate the noise figure of the amplifier if the signal-to-noise ratio at the output is 20 dB.
Added by Shane H.
Step 1
SNR is defined as the ratio of the power of a signal (meaningful information) to the power of background noise (unwanted signal). The SNR at the input can be calculated as follows: SNR_input = Signal level / Noise level = 120 mV / 6 mV = 20 Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 96 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

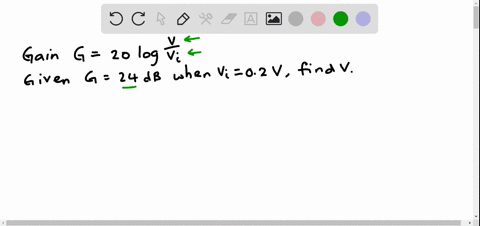

The term decibel is also used in electronics for current and voltage ratios. Gain is defined as the ratio between the signal coming in and the signal going out. The gain, $G,$ in decibels, of an amplifier is defined as $G=20 \log \frac{V}{V_{i}}$ where $V$ is the voltage output and $V_{i}$ is the voltage input. If the gain of an amplifier is 24 dB when the voltage input is $0.2 \mathrm{V},$ find the voltage output, $V$ Answer to the nearest tenth of a volt.
Audrey F.
If the input voltage to an amplifier is 1 mV and the output voltage is 10 mV, the voltage amplification ratio is ___. The power ratio is ___. The gain is ___ dB. Please answer as simply as possible, without use of any logarithms. Thank you!
Anand J.
A certain amplifier has a differential gain of $500 .$ If the two input terminals are tied together and a $10-\mathrm{mV}$ -rms input signal is applied, the output signal is $20 \mathrm{mV}$ rms Find the CMRR for this amplifier.
