$t=0$ $t=l$ $4\Omega$ $1H$ $1V$ $0.25F$ $v_0$ $a$ $b$
Added by Kelsey T.
Close
Step 1
Step 1: The circuit consists of a voltage source V(t), a resistor R, an inductor L, and a capacitor C. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

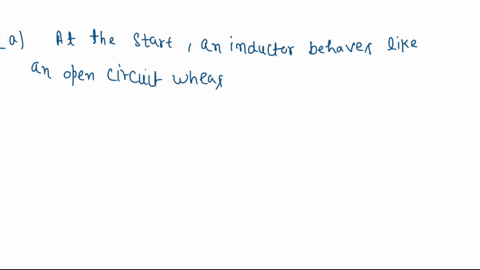

The figure on the right shows a DC circuit with the switch S being closed for t<0, and at t=0, the switch is opened, (a) Determine the voltage across and the current through each device in the circuit, i.e. the resister, the inductor, and the capacitor for t<0, and immediately right after S being opened. (b) Determine the current i_L through the inductor as a function of time for t ≥ 0.
Sri K.

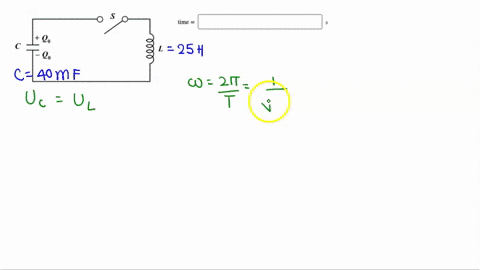

In the circuit, the capacitor is fully charged when switch S is closed. Calculate the time needed for the potential energy stored by the circuit to be equally distributed between the capacitor and inductor. The capacitance is C = 40.0 mF and inductance is L = 25.0 H.
