The switch in the circuit shown has been closed for a long time. At t = 0 , the switch is opened. Find the time constant? 10 Ω 20 Ω t =0 mA 2 mF 15 Ω 30 Ω
Added by Dominique S.
Step 1
The circuit consists of resistors, a capacitor, and a switch. The switch has been closed for a long time, indicating that the capacitor is fully charged. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Pritesh Ranjan and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider that the switch S1 in the circuit shown in Fig. 5 is open for a long time, and it is closed at t=0. Find I(t) for t>0. S1 I1 SW L1 1.5A R1 10 R2 10 15mH Fig. 5
Sri K.
In the circuit of the figure below, the switch has been open for a long time. It is then suddenly closed. Take Ε = 10.0 V, R1 = 47.0 kΉ, R2 = 195 kΉ, and C = 15.0 μF. (a) Determine the time constant before the switch is closed. (b) Determine the time constant after the switch is closed. (c) Let the switch be closed at t = 0. Determine the current in the switch as a function of time. (Assume I is in A and t is in s. Do not enter units in your expression. Use the following as necessary: t.)
Adi S.

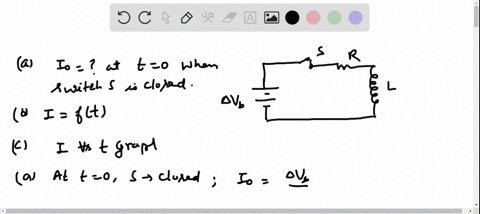

The switch in FIGURE P34.80 has been open for a long time. It is closed at $t=0 \mathrm{s}$ a. After the switch has been closed for a long time, what is the current in the circuit? Call this current $I_{0}$. b. Find an expression for the current $I$ as a function of time. Write your expression in terms of $I_{0}, R,$ and $L$ c. Sketch a current-versus-time graph from $t=0$ s until the current is no longer changing.
