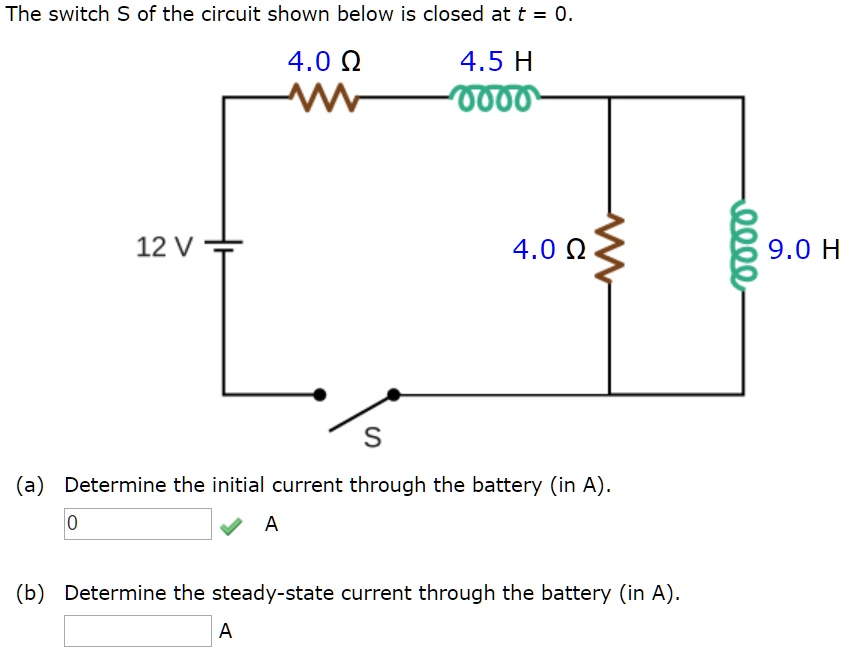

The switch S of the circuit shown below is closed at $t = 0$. 4.0 Ω 4.5 H 12 V 4.0 Ω 9.0 H (a) Determine the initial current through the battery (in A). 0 A (b) Determine the steady-state current through the battery (in A). A
Added by Gloria P.
Close
Step 1
Therefore, the initial current through the battery is 0 A. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 53 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A 6Ω resistor, a 4 H inductor, and a 12 V battery are all connected in series, as shown above. The switch S, after being open for a long time, is closed at time t = 0. a. Determine the voltage across the inductor immediately after the switch is closed. b. Determine the current in the resistor after the switch has been closed for a long time. c. Write an equation for the voltage across the resistor as a function of time t after the switch is closed. d. On the axes below, graph the voltage across the resistor V versus time t, from t = 0 to t = 3 seconds
Sri K.
A series circuit consists of a 0.55 H inductor with a 4.0-ohm resistor, a switch, and a 12-V battery. (a) When the switch is closed, what is the initial current through the 4.0-ohm resistor? (b) After the switch has been closed, what is the maximum current in the 4.0-ohm resistor?
Adi S.
13(a). An inductor, battery, resistance, ammeter, and switch are connected in series. If the switch, initially open, is now closed, what is the final value of the current? Zero battery voltage divided by inductance, battery voltage times inductance, battery voltage divided by resistance. The current is doubled. The current is halved. The current is a factor times exp(-tc/t), where tc is the time constant. 13(b). A 13-V battery is connected in series with a switch, resistor, and coil. If the circuit's time constant is 1.2 x 10^-4 s and the final steady current after the switch is closed becomes 2.5 A, what is the value of the inductance? 3.9 x 10^-3 H 6.2 x 10^-4 H 2.3 x 10^-1 H 2.7 x 10^-3 H 2.3 x 10^-5 H
