Question

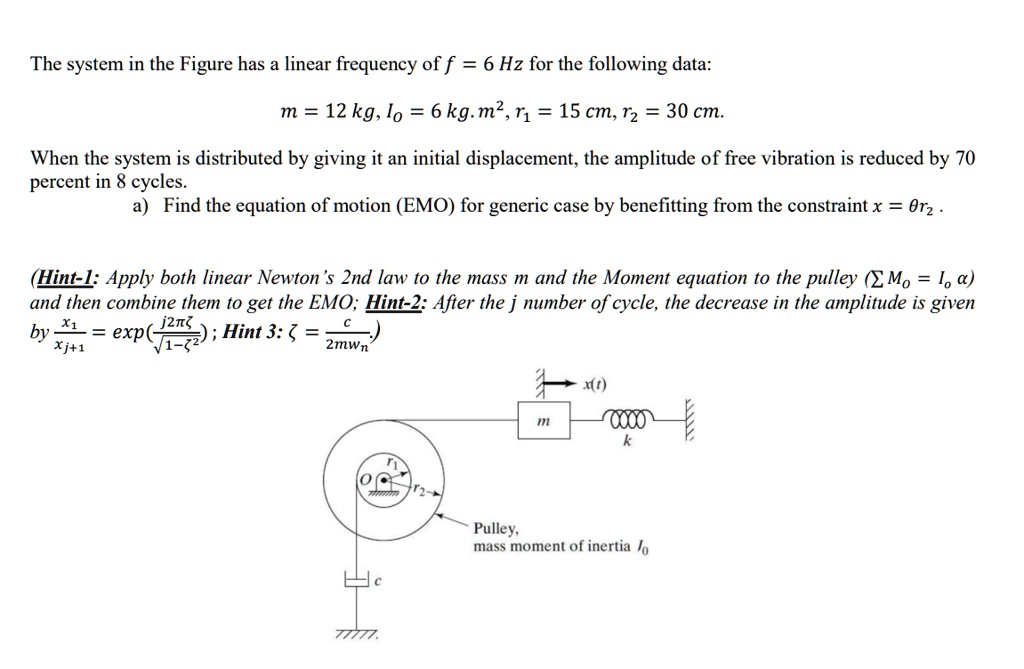

The system in the Figure has a linear frequency of $f = 6 \text{ Hz}$ for the following data: $m = 12 \text{ kg}$, $I_o = 6 \text{ kg.} m^2$, $r_1 = 15 \text{ cm}$, $r_2 = 30 \text{ cm}$. When the system is distributed by giving it an initial displacement, the amplitude of free vibration is reduced by 70 percent in 8 cycles. a) Find the equation of motion (EMO) for generic case by benefitting from the constraint $x = \theta r_2$. (Hint-1: Apply both linear Newton's 2nd law to the mass $m$ and the Moment equation to the pulley ($\sum M_o = I_o \alpha$) and then combine them to get the EMO; Hint-2: After the $j$ number of cycle, the decrease in the amplitude is given by $\frac{x_{j+1}}{x_j} = \exp(\frac{j 2\pi \zeta}{\sqrt{1-\zeta^2}}); Hint 3: \zeta = \frac{c}{2mw_n}$)

          The system in the Figure has a linear frequency of $f = 6 \text{ Hz}$ for the following data:
$m = 12 \text{ kg}$, $I_o = 6 \text{ kg.} m^2$, $r_1 = 15 \text{ cm}$, $r_2 = 30 \text{ cm}$.
When the system is distributed by giving it an initial displacement, the amplitude of free vibration is reduced by 70
percent in 8 cycles.
a) Find the equation of motion (EMO) for generic case by benefitting from the constraint $x = \theta r_2$.
(Hint-1: Apply both linear Newton's 2nd law to the mass $m$ and the Moment equation to the pulley ($\sum M_o = I_o \alpha$)
and then combine them to get the EMO; Hint-2: After the $j$ number of cycle, the decrease in the amplitude is given
by $\frac{x_{j+1}}{x_j} = \exp(\frac{j 2\pi \zeta}{\sqrt{1-\zeta^2}}); Hint 3: \zeta = \frac{c}{2mw_n}$)
Show more…
The system in the Figure has a linear frequency of f = 6 Hz for the following data: m = 12 kg, Io = 6 kg. m^2, r1 = 15 cm, r2 = 30 cm. When the system is distributed by giving it an initial displacement, the amplitude of free vibration is reduced by 70 percent in 8 cycles. a) Find the equation of motion (EMO) for generic case by benefitting from the constraint x = θ r2. (Hint-1: Apply both linear Newton's 2nd law to the mass m and the Moment equation to the pulley (∑ Mo = Io α) and then combine them to get the EMO; Hint-2: After the j number of cycle, the decrease in the amplitude is given by (xj+1)/(xj) = ((j 2πζ)/(√(1-ζ^2))); Hint 3: ζ = (c)/(2mwn))

Added by Laura J.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
The system in the Figure has a linear frequency of f = 6 Hz for the following data: m = 12 kg, Io = 6 kg.m^2, r = 15 cm, r = 30 cm. When the system is disturbed by giving it an initial displacement, the amplitude of free vibration is reduced by 70 percent in 8 cycles. a) Find the equation of motion (EMO) for the generic case by benefiting from the constraint x = Or^2. (Hint-1: Apply both linear Newton's 2nd law to the mass m and the Moment equation to the pulley (EMo = 1, a) and then combine them to get the EMO; Hint-2: After the j number of cycles, the decrease in the amplitude is given by x(t) = x(0) * (0.3)^(j/8)). Pulley, mass moment of inertia Jo
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty Ivan Kochetkov
Jennifer Stoner verified

Frank Deng and 84 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
find-the-frequency-of-small-oscillations-the-arrangement-shown-the-figure-the-radius-of-the_pulley-is-r-the-mass-ofthe_pulley-is-the-mass-of-the-body-i5-m-and-the-spring-constant_is-kthe-mas-16866

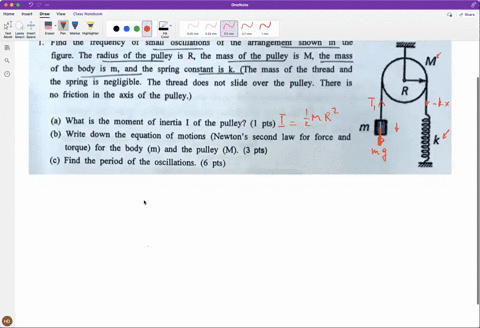

Find the frequency of small oscillations of the arrangement shown in the figure. The radius of the pulley is R, the mass of the pulley is M, the mass of the body is m, and the spring constant is k. (The mass of the thread and the spring is negligible. The thread does not slide over the pulley. There is no friction in the axis of the pulley.) (a) What is the moment of inertia I of the pulley? (1 pts) (b) Write down the equation of motions (Newton’s second law for force and torque) for the body (m) and the pulley (M). (3 pts) (c) Find the period of the oscillations. (6 pts)
