The system show below is comprised of two members: ABC and BDE, connected by a pin at B. The bas

Question

Diwakar Mandilwar · Answer

Hello friends, here we are going to discuss this problem in which I can say consider equilibrium

Adi S · Answer

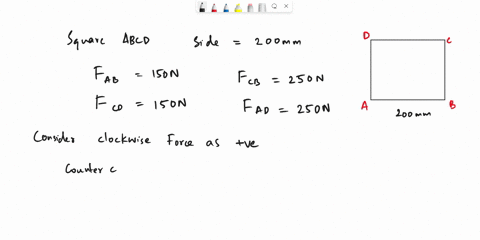

In this question, a square AB C, E is given and the side of the square that is given as 200mm. S

Adi S · Answer

Here from the diagram we have tan theta is equal to h by x over here theta is equal to tan inver

Adi S · Answer

integration from triangle ABC cos 30 degree is equal to AB divided by AC. So AB would be equal t

Adi S · Answer

Here in this question first we can write down a given data that is a condition is given that is

The system show below is comprised of two members: ABC and BDE, connected by a pin at B. The bases at A and E are pins, keeping the system stable and in equilibrium. Determine the internal forces at point D of member BDE, if a point force of 860 N is applied vertically at C.
