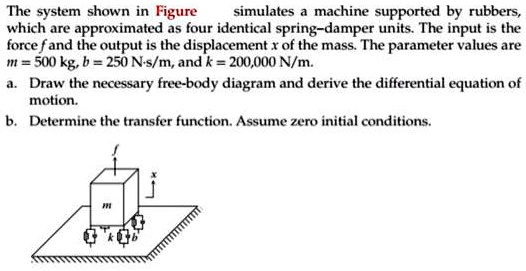

The system shown in Figure simulates a machine supported by rubbers, which are approximated as four identical spring-damper units. The input is the force f and the output is the displacement x of the mass. The parameter values are m = 500 kg, b = 250 N·s/m, and k = 200,000 N/m. a. Draw the necessary free-body diagram and derive the differential equation of motion. b. Determine the transfer function. Assume zero initial conditions.
Added by Sherry S.
Close
Step 1
Four identical spring-damper units act in parallel, so - total stiffness = 4k - total damping = 4b Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

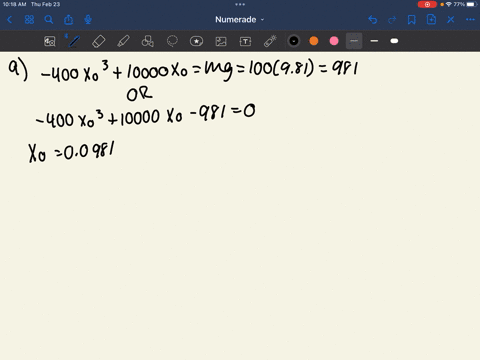

The equation of motion of a spring-mass-damper system, with a softening-type spring, is given by (in SI units) $$ 100 \ddot{x}+500 \dot{x}+10,000 x-400 x^{3}=0 $$ a. Determine the static equilibrium position of the system. b. Derive the linearized equation of motion for small displacements $(x)$ about the static equilibrium position. c. Find the natural frequency of vibration of the system for small displacements.
The $4-\mathrm{kg}$ cylinder is attached to a viscous damper and to the spring of stiffness $k=800 \mathrm{N} / \mathrm{m} .$ If the cylinder is released from rest at time $t=0$ from the position where it is displaced a distance $y=100 \mathrm{mm}$ from its equilibrium position, plot the displacement $y$ as a function of time for the first second for the two cases where the viscous damping coefficient is $(a) \quad c=124 \mathrm{N} \cdot \mathrm{s} / \mathrm{m} \quad$ and $(b) c=80 \mathrm{N} \cdot \mathrm{s} / \mathrm{m}$
To a damped spring-mass system whose parameters are m = 1 kg, c = 4 N sec / m and k = 3 N / m is applied an external force given by F (t) = 5 cos (t). Describe the motion of the system assuming that x (0) = 0 and x'(0)=0
