Question

The T-beam is constructed as shown. If the nails can each support a shear force of $950 \mathrm{lb}$, determine the maximum shear force $V$ that the beam can support and the corresponding maximum nail spacing $s$ to the nearest $\frac{1}{8}$ in. The allowable shear stress for the wood is $\tau_{\text {allow }}=450 \mathrm{psi}$.

          The T-beam is constructed as shown. If the nails can each support a shear force of $950 \mathrm{lb}$, determine the maximum shear force $V$ that the beam can support and the corresponding maximum nail spacing $s$ to the nearest $\frac{1}{8}$ in. The allowable shear stress for the wood is $\tau_{\text {allow }}=450 \mathrm{psi}$.

Show more…

Added by George T.

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
The T-beam is constructed as shown. If the nails can each support a shear force of $950 \mathrm{lb}$, determine the maximum shear force $V$ that the beam can support and the corresponding maximum nail spacing $s$ to the nearest $\frac{1}{8}$ in. The allowable shear stress for the wood is $\tau_{\text {allow }}=450 \mathrm{psi}$.
Close icon
Play audio
Feedback
Powered by NumerAI
Danielle Fairburn David Collins
Jennifer Stoner verified

Syon Schlecht and 88 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.

*

Recommended Videos

-
the-beam-is-constructed-from-three-boards-determine-the-maximum-shear-v-that-it-can-support-if-the-a

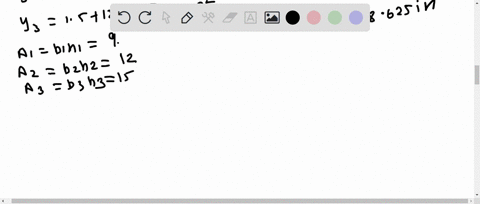

The beam is constructed from three boards. Determine the maximum shear $V$ that it can support if the allowable shear stress for the wood is $\tau_{\text {allow }}=400$ psi. What is the maximum allowable spacing $s$ of the nails if each nail can resist a shear force of $400 \mathrm{lb} ?$

Mechanics of Materials

the-beam-is-constructed-from-three-boards-determine-the-maximum-loads-p-that-it-can-support-if-the-a

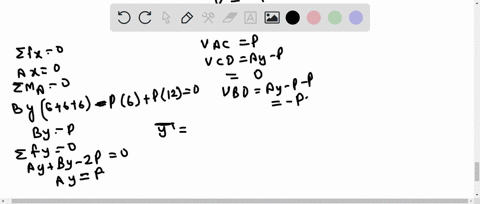

The beam is constructed from three boards. Determine the maximum loads $P$ that it can support if the allowable shear stress for the wood is $\tau_{\text {allow }}=400$ psi. What is the maximum allowable spacing $s$ of the nails used to hold the top and bottom flanges to the web if each nail can resist a shear force of $400 \mathrm{lb} ?$
