5. The timber truss shown supports a load of P = 10 kip. Find the normal stress in AB and the ho

Question

Kratika Bhadauria · Answer

So here we need to determine the normal stress acting on each bar, shearing and bearing stress a

Supreeta N · Answer

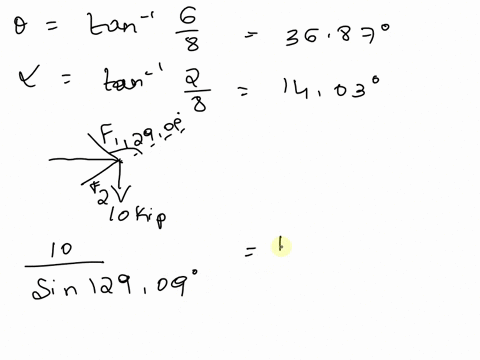

Hello students, here theta equal to tan inverse of 6 by 8 which is 36 .87 degree, alpha is equal

Karan Deep · Answer

Good morning students in this question we are asked for this data set as a type of structure tha

Supreeta N · Answer

hi this is a truss problem so here we have so this is a figure so now this is point A so from th

Banhishikha Sinha · Answer

So beta is a 60 degree which is given angle AB is angle BC which is equal to an equilateral tria

5. The timber truss shown supports a load of P = 10 kip. Find the normal stress in AB and the horizontal shear stress in timber AC at C.
