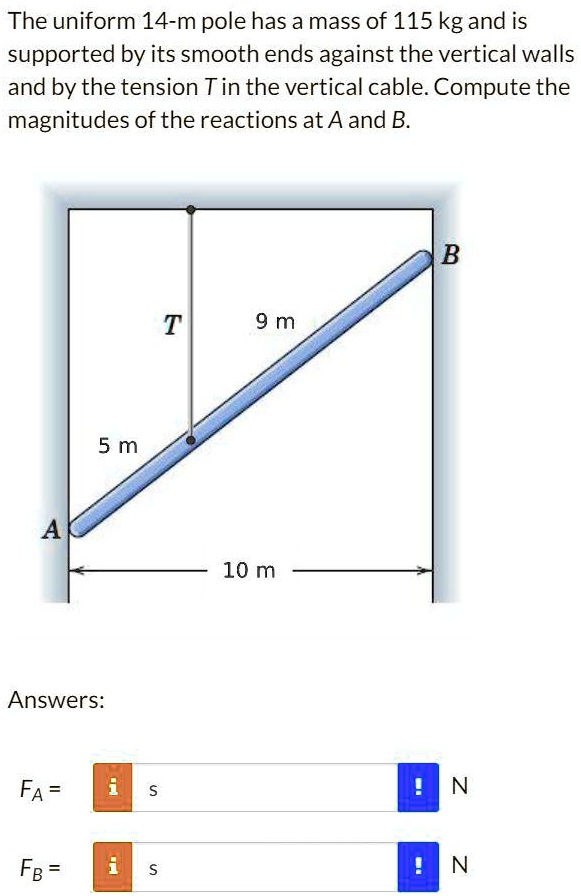

The uniform 14-m pole has a mass of 115 kg and is supported by its smooth ends against the vertical walls and by the tension T in the vertical cable. Compute the magnitudes of the reactions at A and B. B T 9 m 5 m A 10 m Answers: F_A = F_B =
Added by Patricia C.
Close
Step 1
8 m/s^2 Weight = mass x acceleration due to gravity Weight = 115 kg x 9.8 m/s^2 = 1127 kg m/s^2 = 1127 N Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 64 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

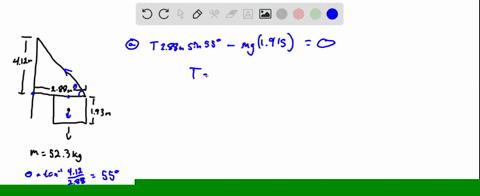

A $52.3$ -kg uniform square sign, $1.93 \mathrm{~m}$ on a side, is hung from a $2.88$ -m rod of negligible mass. A cable is attached to the end of the rod and to a point on the wall $4.12 \mathrm{~m}$ above the point where the rod is fixed to the wall, as shown in Fig. 9-50. (a) Find the tension in the cable. (b) Calculate the horizontal and vertical components of the force exerted by the wall on the rod.
The $6-m$ pole $A B C$ is acted upon by a $455-N$ force as shown. The pole is held by a ball-and-socket joint at $A$ and by two cables $B D$ and $B E .$ For $a=3 \mathrm{m}$, determine the tension in each cable and the reaction at $A .$
Equilibrium of Rigid Bodies
Equilibrium in Three Dimensions
The uniform $10-\mathrm{kg}$ rod $A B$ is supported by a ball-and-socket joint at $A$ and by the cord $C G$ that is attached to the midpoint $G$ of the rod. Knowing that the rod leans against a frictionless vertical wall at $B$, determine (a) the tension in the cord, (b) the reactions at $A$ and $B$.
