The velocity profile in fully developed laminar flow in a circular pipe of inner radius R = 2 cm, in m/s, is given by u(r) = 4(1 - r2/R2). Determine the average and maximum velocities in the pipe and the volume flow rate.
Added by Zachary J.
Step 1
The maximum velocity occurs at the center of the pipe where r = 0. So, substitute r = 0 into the velocity profile equation: u_max = 4(1 - 0) = 4 m/s Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

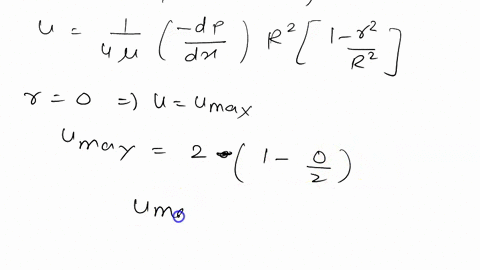

For fully developed laminar pipe flow in a circular pipe, the velocity profile is given by $u(r)=2\left(1-r^{2} / R^{2}\right)$ in $\mathrm{m} / \mathrm{s}$ where $R$ is the inner radius of the pipe. Assuming that the pipe diameter is $4 \mathrm{cm},$ find the maximum and average velocities in the pipe as well as the volume flow rate.
Monisha S.

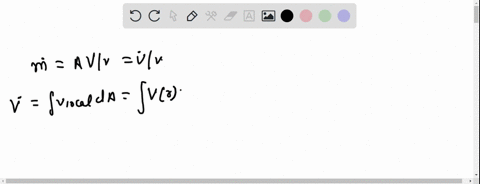

A pipe of radius $R$ has a fully developed laminar flow of air at $P_{0}, T_{0}$ with a velocity profile of $\mathbf{V}=\mathbf{V}_{c}\left[1-(r / R)^{2}\right],$ where $\mathbf{V}_{c}$ is the velocity on the center-line and $r$ is the radius, as shown in Fig. $\mathrm{P} 4.142 .$ Find the total mass flow rate and the average velocity, both as functions of $\mathbf{V}_{c}$ and $R$.
