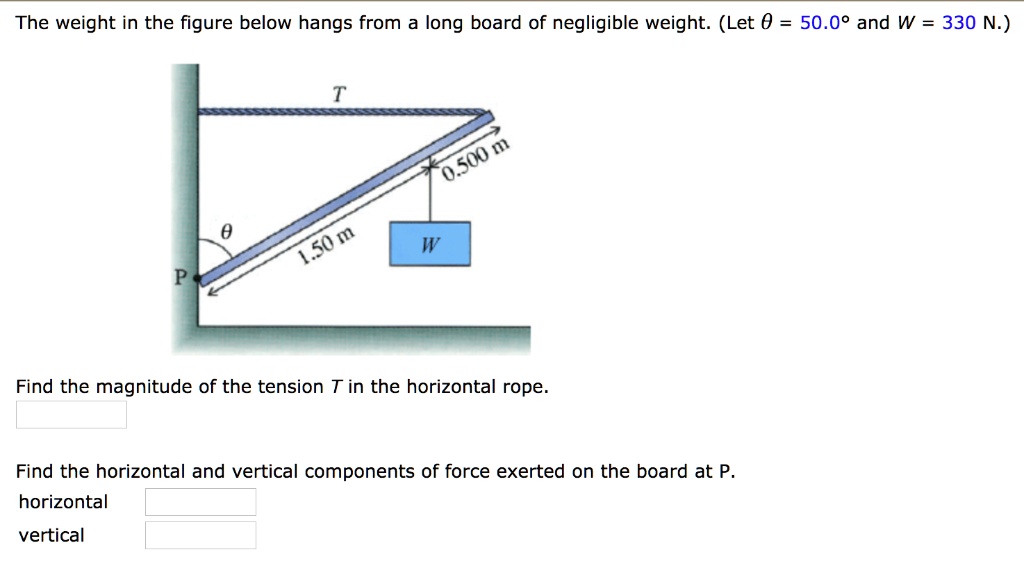

The weight in the figure below hangs from a long board of negligible weight. (Let ( heta = 50.0^circ) and (W = 330 ext{ N}).) T ( heta) P 1.50 m W 0.500 m Find the magnitude of the tension (T) in the horizontal rope. Find the horizontal and vertical components of force exerted on the board at P. horizontal vertical
Added by Samuel M.
Close
Step 1
The weight (W) is acting vertically downward and it can be resolved into two components: a vertical component (Wv) and a horizontal component (Wh). The horizontal component (Wh) is given by W*sin(θ) and the vertical component (Wv) is given by W*cos(θ), where θ Show more…
Show all steps
Your feedback will help us improve your experience
Jacob Fry and 84 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

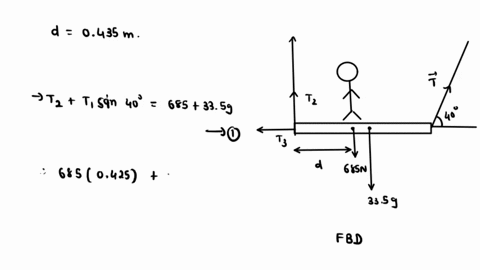

A uniform plank of length 2.00 m and mass 33.5 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 720-N person is d = 0.500 m from the left end.
Sri K.
Hubert A.

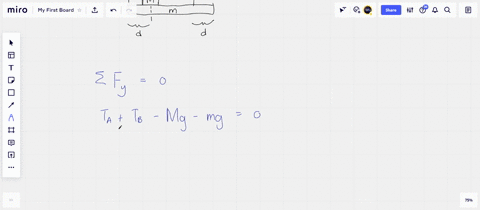

A board, with a weight $m g=120.0 \mathrm{~N}$ and a length of $5.00 \mathrm{~m}$, is supported by two vertical ropes, as shown in the figure. Rope $A$ is connected to one end of the board, and rope $B$ is connected at a distance $d=1.00 \mathrm{~m}$ from the other end of the board A box with a weight $M g=20.0 \mathrm{~N}$ is placed on the board with its center of mass at $d=1.00 \mathrm{~m}$ from rope $A$. What are the tensions in the two ropes?
