The windshield of an automobile is manufactured by sandwiching a 0.02 cm thick sheet of polymer (E = 4.8 GPa) between two 4.5 mm thick glass sheets (E = 82.7 GPa). Calculate the modulus of elasticity of the windshield parallel and perpendicular to the sheet.
Added by Mark K.
Step 1
To calculate the modulus of elasticity parallel to the sheet, we need to consider the composite structure of the windshield. The glass sheets are much thicker than the polymer sheet, so we can assume that the glass sheets contribute most to the overall stiffness Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 52 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

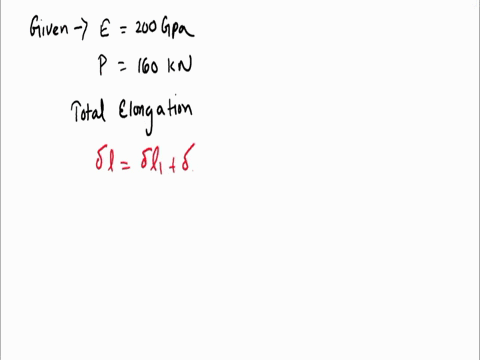

Example 3.1. An automobile component shown in Fig. 3.2 is subjected to a tensile load of 160 kN. A1 = 50 mm^2, A2 = 100 mm^2, B = 160 kN. Fig. 3.2 Determine the total elongation of the component if its modulus of elasticity is 200 GPa.
Madhur L.
A steel bar 100 mm long and having a square cross section 20 mm on an edge is pulled in tension with a load of 97,384 N , and experiences an elongation of 0.11 mm . Assuming that the deformation is entirely elastic, calculate the elastic modulus of this steel in GPa. (answer format X, no decimal places)
Adi S.
A rectangular bar 40 mm wide and 30 mm thick is 0.5 m long. It is acted upon by axial tensile force of 120 KN. Find Change in dimensions of the bar. (E = 200 Gpa and μ=0.25.)
Animesh R.
