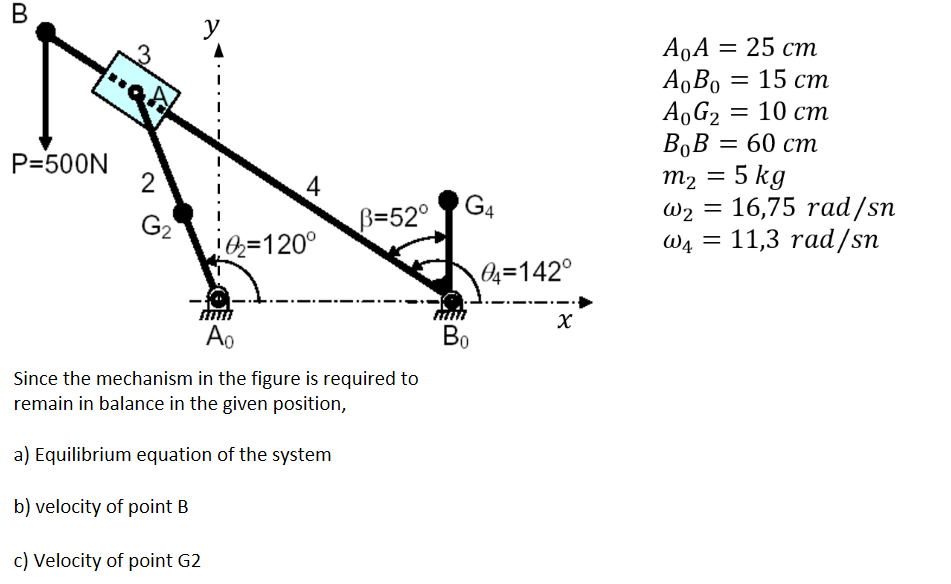

\[ \begin{array}{l} A_{0} A=25 \mathrm{~cm} \\ A_{0} B_{0}=15 \mathrm{~cm} \\ A_{0} G_{2}=10 \mathrm{~cm} \\ B_{0} B=60 \mathrm{~cm} \\ m_{2}=5 \mathrm{~kg} \\ \omega_{2}=16,75 \mathrm{rad} / \mathrm{sn} \\ \omega_{4}=11,3 \mathrm{rad} / \mathrm{sn} \end{array} \] Since the mechanism in the figure is required to remain in balance in the given position, a) Equilibrium equation of the system b) velocity of point B c) Velocity of point G2
Added by Can U.
Close
Step 1
Let's consider the clockwise moments as positive and the counterclockwise moments as negative. Moment due to m2 (mass at G2): m2 * g * A0G2 Moment due to B0B (tension in the cable): -T * A0B0 Equilibrium equation: m2 * g * A0G2 - T * A0B0 = 0 b) Velocity of Show more…
