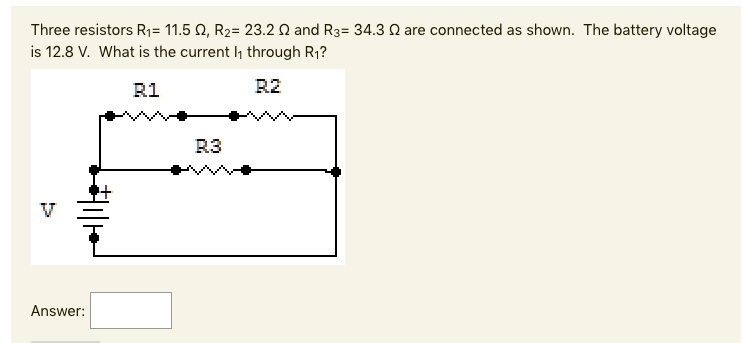

Three resistors R1= 11.5 ?, R2= 23.2 ? and R3= 34.3 ? are connected as shown. The battery voltage is 12.8 V. What is the current I1 through R1?
Added by Joan M.
Close
Step 1
Given resistors: R1 = 11.5 Ī©, R2 = 23.2 Ī©, R3 = 34.3 Ī© Total resistance, Rt = R1 + R2 + R3 Rt = 11.5 + 23.2 + 34.3 Rt = 68 Ī© Show moreā¦
Show all steps
Your feedback will help us improve your experience
Sri K and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
10. Four resistors R1=10.0 Ģ©, R2=7.0 Ģ©, R3=14.0 Ģ©, and R4=10.0 Ģ© are mounted as shown in the figure. The voltage of the battery is V = 12 Volts. What is the current in the R3 resistor? Amp
Sahil K.
Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the resistors have the following values. R1 = 1.37 Ģ; R2 = 2.74 Ģ; R3 = 6.85 Ģ; R4 = 4.11 Ģ How much current flows through each of the four resistors? What is the total current delivered by the battery? What is the voltage across R1? What are the voltages across each of the three parallel resistors?
Khoobchandra A.
A series circuit is made up of a $12.0-\mathrm{V}$ battery and three resistors. The voltage across one resistor is $1.21 \mathrm{V},$ and the voltage across another resistor is $3.33 \mathrm{V} .$ What is the voltage across the third resistor?
Series and Parallel Circuits
Simple Circuits
