4. From the capacitive circuit shown below, calculate the following: a. Total Capacitance ($C_t$) b. Total Charge ($Q$) c. Charge on capacitor ($C_2$) 3 µF 6 µF 4 µF 6 µF
Added by Cynthia L.
Close
Step 1
Total Capacitance (C): The total capacitance (C) in a circuit is the sum of the individual capacitances of all the capacitors connected in parallel. If you have multiple capacitors connected in series, you need to calculate the equivalent capacitance using the Show more…
Show all steps
Your feedback will help us improve your experience
Ajay Singhal and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Ct = kC Total capacitance in a parallel connection Total capacitance in a series connection Capacitance of a parallel plate capacitor Total capacitance in a capacitor with dielectric Voltage across the capacitor
Adi S.
The capacitor combination given below is connected to a 12-volt battery (Vab). The capacitance for each capacitor is: C1 = 9uF, C2 = 12uF, C3 = 3uF, C4 = 1uF. Determine the: - Total capacitance - Total charge of the capacitor combination - Charge in each capacitor Q1 - Q2 - Q3 - Q4 - Voltage across each capacitor V1 - V2 - V3 - V4
Vishal G.

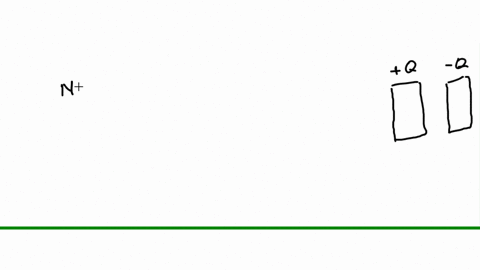

A capacitor is said to carry a charge $Q .$ What's the net charge on the entire capacitor?
