Question

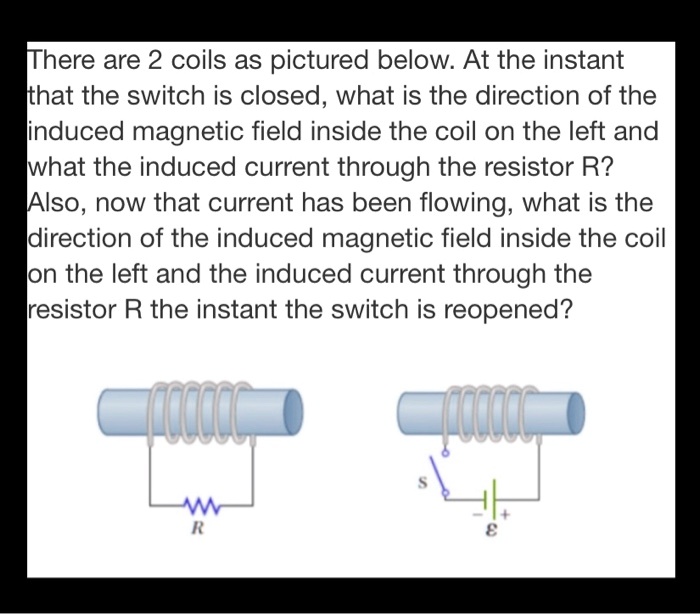

There are 2 coils as pictured below. At the instant that the switch is closed, what is the direction of the induced magnetic field inside the coil on the left and what the induced current through the resistor R? Also, now that current has been flowing, what is the direction of the induced magnetic field inside the coil on the left and the induced current through the resistor R the instant the switch is reopened?

          There are 2 coils as pictured below. At the instant that the switch is closed, what is the direction of the induced magnetic field inside the coil on the left and what the induced current through the resistor R?
Also, now that current has been flowing, what is the direction of the induced magnetic field inside the coil on the left and the induced current through the resistor R the instant the switch is reopened?

There are 2 coils as pictured below. At the instant that the switch is closed, what is the direction of the induced magnetic field inside the coil on the left and what the induced current through the resistor R?
Also, now that current has been flowing, what is the direction of the induced magnetic field inside the coil on the left and the induced current through the resistor R the instant the switch is reopened?

Added by Christopher M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

09/08/2023

Step 1

When the switch is closed, the current in the coil on the right starts to flow and increases. This increasing current creates an increasing magnetic field. According to Lenz's law, the induced magnetic field in the coil on the left will oppose this change. So, the Show more…

Show all steps

Thanks for your feedback!

There are 2 coils as pictured below: At the instant that the switch is closed, what is the direction of the induced magnetic field inside the coil on the left and what is the induced current through the resistor R? Also, now that current has been flowing, what is the direction of the induced magnetic field inside the coil on the left and the induced current through the resistor R the instant the switch is reopened?
