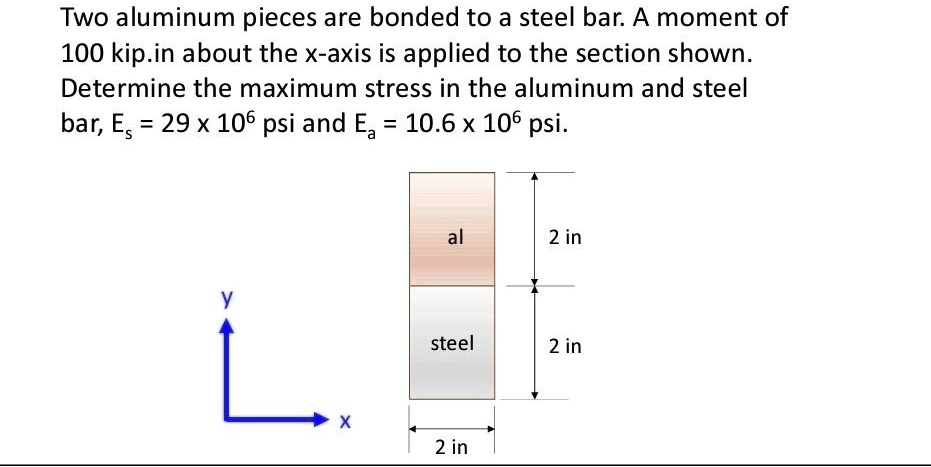

Two aluminum pieces are bonded to a steel bar. A moment of 100 kip.in about the x-axis is applied to the section shown. Determine the maximum stress in the aluminum and steel bar, $E_s = 29 \times 10^6$ psi and $E_a = 10.6 \times 10^6$ psi.
Added by Antonia J.
Close
Step 1
The moment of inertia for a rectangular section is given by the formula: I = (1/12) * b * h^3 For the aluminum section, the width (b) is 2 inches and the height (h) is 2 inches. Therefore, the moment of inertia for the aluminum section is: I_al = (1/12) * 2 * Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 95 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Supreeta N.
The bar is made of an aluminum alloy having a stress-strain diagram that can be approximated by the straight line segments shown. Assuming that this diagram is the same for both tension and compression, determine the moment the bar will support if the maximum strain at the top and bottom fibers of the beam is $\epsilon_{\max }=0.05$.
A bar made of aluminium has the dimensions shown in Figure Q2(a). Two axial forces are applied to the bar. Calculate the force in y direction so that the total length in x direction contracts 0.08 mm. The material behaves elastically. The Young's modulus for aluminium is given as 70 GPa and v = 0.29. [10 marks] 40 mm 60 mm 40 kN 40 kN 80 mm Figure Q2(a)
