Question

Two blocks connected by a rope of negligible mass are being dragged by a horizontal force (Fig. P5.43). Suppose $F=68.0 \mathrm{~N}, m_{1}=12.0 \mathrm{~kg}, m_{2}=18.0 \mathrm{~kg}$, and the coefficient of kinetic friction between each block and the surface is 0.100. (a) Draw a free-body diagram for each block. (b) Determine the tension $T$ and the magnitude of the acceleration of the system.

Name: Two blocks connected by a rope of negligible mass are being dragged by a horizontal force (Fig. P5.43). Suppose F=68.0 N, m1=12.0 kg, m2=18.0 kg, and the coefficient of kinetic friction between each block and the surface is 0.100. (a) Draw a free-body diagram for each block. (b) Determine the tension T and the magnitude of the acceleration of the system.
Uploaded: 2022-10-18T13:33:56-08:00
Duration: 2 min 59 s
Channel: Sahil Kumar
Description: Two blocks connected by a rope of negligible mass are being dragged by a horizontal force (Fig. P5.43). Suppose F=68.0 N, m1=12.0 kg, m2=18.0 kg, and the coefficient of kinetic friction between each block and the surface is 0.100. (a) Draw a free-body diagram for each block. (b) Determine the tension T and the magnitude of the acceleration of the system.

          Two blocks connected by a rope of negligible mass are being dragged by a horizontal force (Fig. P5.43). Suppose $F=68.0 \mathrm{~N}, m_{1}=12.0 \mathrm{~kg}, m_{2}=18.0 \mathrm{~kg}$, and the coefficient of kinetic friction between each block and the surface is 0.100. (a) Draw a free-body diagram for each block. (b) Determine the tension $T$ and the magnitude of the acceleration of the system.

Added by Brian C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sahil Kumar

10/18/2022

Step 1

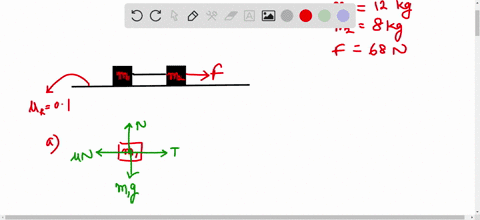

- The normal force acting upwards is also $m_1g$. - The force of friction acting to the left is $f_1 = \mu m_1g$. - The tension force acting to the right is $T$. For block 2: - The force of gravity acting downwards is $m_2g$. - The normal force acting upwards is Show more…
