Two coaxial metal cylindrical tubes, of radius a and b > a, represent a cylindrical cable. The inner conductor at a carries a linear charge λ and the outer conductor at b is grounded. Assume an arbitrary length L. a) Determine the electric field in the region between the two conductors. b) Determine the energy stored in the system. Recall W = ε0/2 ∫ E^2 dτ, where the integral is over all space. c) This system also represents a cylindrical capacitor. You may recall the energy stored in a capacitor is given by W = Q^2 / (2C), where Q is the total charge and C is the capacitance. Determine the capacitance per unit length of the cable.

          Two coaxial metal cylindrical tubes, of radius a and b > a, represent a cylindrical cable. The inner conductor at a carries a linear charge λ and the outer conductor at b is grounded. Assume an arbitrary length L.

a) Determine the electric field in the region between the two conductors.
b) Determine the energy stored in the system. Recall W = ε0/2 ∫ E^2 dτ, where the integral is over all space.
c) This system also represents a cylindrical capacitor. You may recall the energy stored in a capacitor is given by W = Q^2 / (2C), where Q is the total charge and C is the capacitance. Determine the capacitance per unit length of the cable.
Show more…

Added by Michael W.

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Two coaxial metal cylindrical tubes, of radius a and b > a, represent a cylindrical cable. The inner conductor at a carries a linear charge λ and the outer conductor at b is grounded. Assume an arbitrary length L. a) Determine the electric field in the region between the two conductors. b) Determine the energy stored in the system. Recall W = ε0/2 ∫ E^2 dτ, where the integral is over all space. c) This system also represents a cylindrical capacitor. You may recall the energy stored in a capacitor is given by W = Q^2 / (2C), where Q is the total charge and C is the capacitance. Determine the capacitance per unit length of the cable.
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty Jennifer Stoner
Danielle Fairburn verified

Lainey Roebuck and 82 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
the-inner-cylinder-of-a-long-cylindrical-capacitor-has-radius-r_a-and-linear-charge-density-lambda-i

The inner cylinder of a long, cylindrical capacitor has radius $r_{a}$ and linear charge density $+\lambda .$ It is surrounded by a coaxial cylindrical conducting shell with inner radius $r_{b}$ and linear charge density $-\lambda$ (see Fig. 24.6). (a) What is the energy density in the region between the conductors at a distance $r$ from the axis? (b) Integrate the energy density calculated in part (a) over the volume between the conductors in a length $L$ of the capacitor to obtain the total electric-field energy per unit length. (c) Use Eq. (24.9) and the capacitance per unit length calculated in Example 24.4 (Section 24.1 ) to calculate $U / L$. Does your result agree with that obtained in part (b)?

University Physics with Modern Physics In SI Units

the-inner-cylinder-of-a-long-cylindrical-capacitor-has-radius-ra-and-linear-charge-density-lambda-it

The inner cylinder of a long, cylindrical capacitor has radius ra and linear charge density +$\lambda$. It is surrounded by a coaxial cylindrical conducting shell with inner radius $r_b$ and linear charge density -$\lambda$ (see Fig. 24.6). (a) What is the energy density in the region between the conductors at a distance $r$ from the axis? (b) Integrate the energy density calculated in part (a) over the volume between the conductors in a length $L$ of the capacitor to obtain the total electric-field energy per unit length. (c) Use Eq. (24.9) and the capacitance per unit length calculated in Example 24.4 (Section 24.1) to calculate $U$/$L$. Does your result agree with that obtained in part (b)?

University Physics with Modern Physics

calc-the-inner-cylinder-of-a-long-cylindrical-capacitor-has-radius-r_a-and-linear-charge-density-lam

CALC The inner cylinder of a long, cylindrical capacitor has radius $r_{a}$ and linear charge density $+\lambda$ . It is surrounded by a coaxial cylindrical conducting shell with inner radius $r_{b}$ and linear charge density $-\lambda$ (see Fig. 24.6$)$ . (a) What is the energy density in the region between the conductors at a distance $r$ from the axis? (b) Integrate the energy density calculated in part (a) over the volume between the conductors in a length $L$ of the capacitor to obtain the total electric-field energy per unit length. (c) Use Eq. $(24.9)$ and the capacitance per unit length calculated in Example 24.4 (Section 24.1 ) to calculate $U / L$ . Does your result agree with that obtained in part (b)?

University Physics with Modern Physics

*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,134 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,540 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,979 solutions
*

Transcript

-

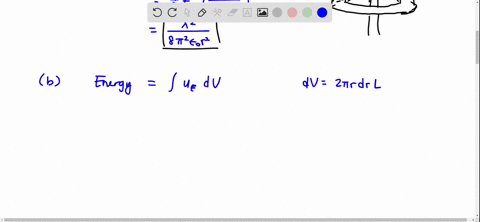

00:02 So if we use u equals 1 half epsilon knot e squared, which is equal to one half epsilon not times 2 pi epsilon not of r squared, and that's equal to 8 pi squared, epsilon not r squared.
