Two coplanar and concentric circular loops of wire carry currents of I_1 = 5.80 A and I_2 = 2.90 A in opposite directions as in the figure below. (a) If r_1 = 12.0 cm and r_2 = 8.50 cm, what is the magnitude of the net magnetic field at the center of the two loops? ?T (b) If r_1 = 12.0 cm and r_2 = 8.50 cm, what is the direction of the net magnetic field at the center of the two loops? out of the page into the page toward the top of the page toward the bottom of the page (c) Let r_1 remain fixed at 12.0 cm and let r_2 be a variable. Determine the value of r_2 such that the net field at the center of the loop is zero. cm

          Two coplanar and concentric circular loops of wire carry currents of I_1 = 5.80 A and I_2 = 2.90 A in opposite directions as in the figure below.
(a) If r_1 = 12.0 cm and r_2 = 8.50 cm, what is the magnitude of the net magnetic field at the center of the two loops?
?T
(b) If r_1 = 12.0 cm and r_2 = 8.50 cm, what is the direction of the net magnetic field at the center of the two loops?
out of the page
into the page
toward the top of the page
toward the bottom of the page
(c) Let r_1 remain fixed at 12.0 cm and let r_2 be a variable. Determine the value of r_2 such that the net field at the center of the loop is zero.
cm

Show more…

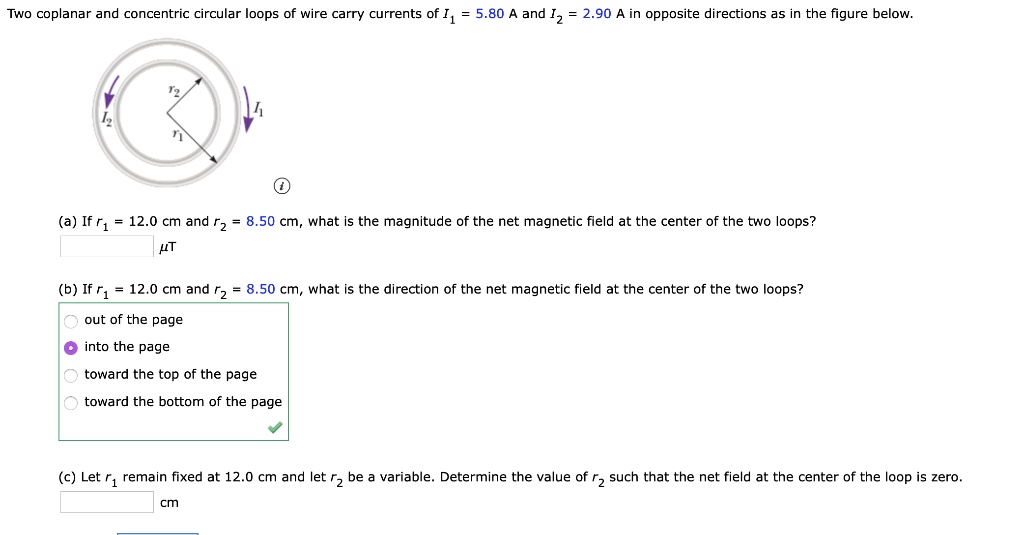

Two coplanar and concentric circular loops of wire carry currents of I1 = 5.80 A and I2 = 2.90 A in opposite directions as in the figure below.
(a) If r1 = 12.0 cm and r2 = 8.50 cm, what is the magnitude of the net magnetic field at the center of the two loops?
?T
(b) If r1 = 12.0 cm and r2 = 8.50 cm, what is the direction of the net magnetic field at the center of the two loops?
out of the page
into the page
toward the top of the page
toward the bottom of the page
(c) Let r1 remain fixed at 12.0 cm and let r2 be a variable. Determine the value of r2 such that the net field at the center of the loop is zero.
cm

Added by Mary R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

07/24/2023

Step 1

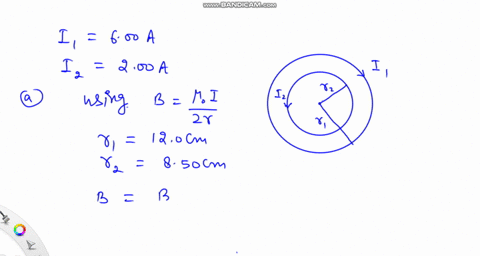

For the first loop, we have $I_1 = 5.80 A$ and $r_1 = 12.0 cm = 0.12 m$. For the second loop, we have $I_2 = 2.90 A$ and $r_2 = 8.50 cm = 0.085 m$. Since the currents are in opposite directions, we will subtract the magnetic fields to find the net magnetic field Show more…
