Question

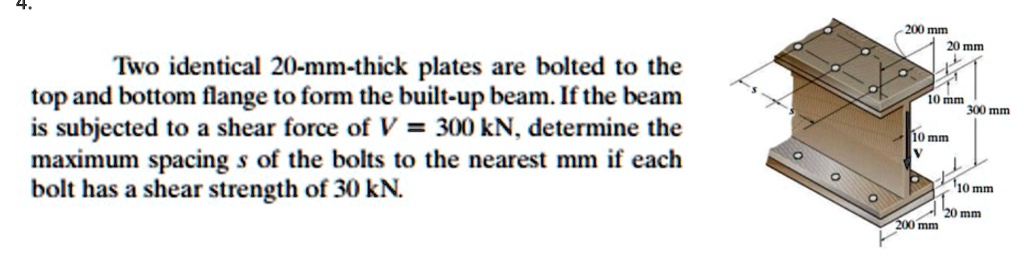

Two identical 20-mm-thick plates are bolted to the top and bottom flange to form the built-up beam. If the beam is subjected to a shear force of $V = 300$ kN, determine the maximum spacing $s$ of the bolts to the nearest mm if each bolt has a shear strength of 30 kN. 200 mm 20 mm 10 mm 300 mm 10 mm V 10 mm 20 mm 200 mm

Name: two identical 20 mm thick plates are bolted to the top and bottom flange to form the built up beam if the beam is subjected to a shear force of v 300 kn determine the maximum spacing s of th 37665
Uploaded: 2023-06-16T12:46:18-08:00
Duration: 3 min 33 s
Channel: Madhur L
Description: two identical 20 mm thick plates are bolted to the top and bottom flange to form the built up beam if the beam is subjected to a shear force of v 300 kn determine the maximum spacing s of th 37665

          Two identical 20-mm-thick plates are bolted to the top and bottom flange to form the built-up beam. If the beam is subjected to a shear force of $V = 300$ kN, determine the maximum spacing $s$ of the bolts to the nearest mm if each bolt has a shear strength of 30 kN.
200 mm
20 mm
10 mm
300 mm
10 mm
V
10 mm
20 mm
200 mm

two identical 20 mm thick plates are bolted to the top and bottom flange to form the built up beam if the beam is subjected to a shear force of v 300 kn determine the maximum spacing s of th 37665

Added by Charles B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

06/16/2023

Step 1

The cross-section consists of three rectangular parts: 1. Top flange: 200 mm x 20 mm 2. Web: 10 mm x (300 mm - 20 mm - 20 mm) = 10 mm x 260 mm 3. Bottom flange: 200 mm x 20 mm First, find the centroid of the entire cross-section. Due to symmetry, the centroid is Show more…
