Question

Two long straight current-carrying wires run parallel to each other. The current in one of the wires is 5.1 A, their separation is 3.6 cm and they repel each other with a force per unit length of 2.0 10-4 N/m. (a) Determine the current in the other wire. 7.1 A (b) Determine if the currents are in the same or opposite direction. oppositesame (c) Determine what will happen if the direction of one current is reversed and tripled. (Select all that apply.) The wires are attracted to each other.The force per unit length is increased by a factor of 3.The wires are repelled by each other.The force per unit length is decreased by a factor of 3.

Name: two long straight current carrying wires run parallel to each other the current in one of the wires is 51 a their separation is 36 cm and they repel each other with a force per unit length o 65057
Uploaded: 2020-03-30T15:29:59-08:00
Duration: 3 min 56 s
Channel: Zachary Warner
Description: two long straight current carrying wires run parallel to each other the current in one of the wires is 51 a their separation is 36 cm and they repel each other with a force per unit length o 65057

          Two long straight current-carrying wires run parallel to each other. The current in one of the wires is 5.1 A, their separation is 3.6 cm and they repel each other with a force per unit length of 2.0 10-4 N/m.
(a) Determine the current in the other wire.
7.1 A
(b) Determine if the currents are in the same or opposite direction.
oppositesame
(c) Determine what will happen if the direction of one current is reversed and tripled. (Select all that apply.)
The wires are attracted to each other.The force per unit length is increased by a factor of 3.The wires are repelled by each other.The force per unit length is decreased by a factor of 3.

Added by Crystal M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Zachary Warner

03/30/2020

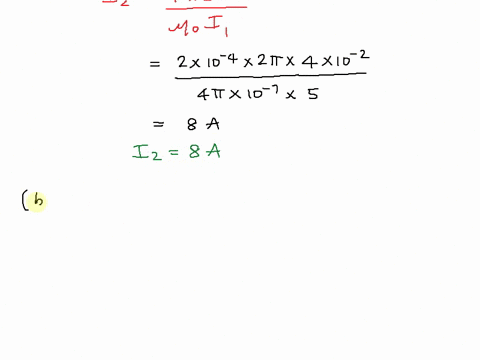

Step 1

The formula is given by: \[ F/L = \frac{\mu_0}{2\pi} \cdot \frac{I_1 I_2}{d} \] where: - \( F/L \) is the force per unit length, - \( \mu_0 \) is the permeability of free space (\( 4\pi \times 10^{-7} \, \text{T m/A} \)), - \( I_1 \) and \( I_2 \) are the Show more…
