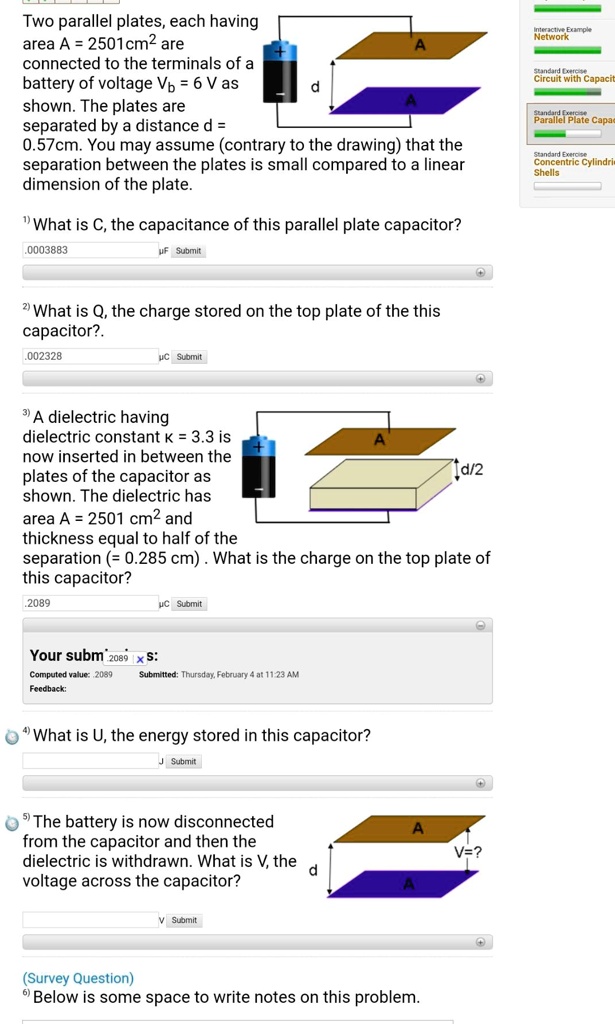

Two parallel plates, each having area A = 2501cm² are connected to the terminals of a battery of voltage Vb = 6 V as shown. The plates are separated by a distance d = 0.57cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate. 1) What is C, the capacitance of this parallel plate capacitor? 2) What is Q, the charge stored on the top plate of the this capacitor?. 3) A dielectric having dielectric constant ? = 3.3 is now inserted in between the plates of the capacitor as shown. The dielectric has area A = 2501 cm² and thickness equal to half of the separation (= 0.285 cm) . What is the charge on the top plate of this capacitor? 4) What is U, the energy stored in this capacitor? 5) The battery is now disconnected from the capacitor and then the dielectric is withdrawn. What is V, the voltage across the capacitor? 6) Below is some space to write notes on this problem.
Added by Breanna C.
Close
Step 1
85 \times 10^{-12} \, \text{F/m} \)), \( A = 2501 \, \text{cm}^2 = 0.2501 \, \text{m}^2 \) is the area of each plate, and \( d = 0.57 \, \text{cm} = 0.0057 \, \text{m} \) is the separation between the plates. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

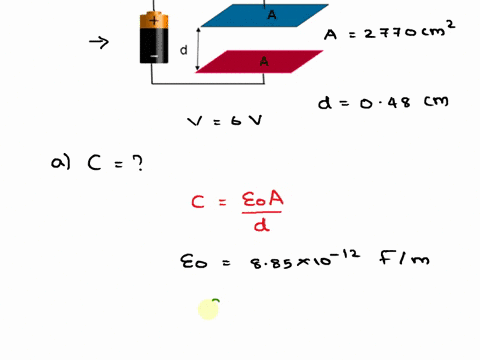

Two parallel plates, each having an area A = 2770 cm^2, are connected to the terminals of a battery with a voltage Vb = 6 V, as shown. The plates are separated by a distance d = 0.48 cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate. 1) What is C, the capacitance of this parallel plate capacitor? 2) What is Q, the charge stored on the top plate of this capacitor? A dielectric, having a dielectric constant K = 3, is now inserted between the plates of the capacitor as shown. The dielectric has an area A = 2770 cm^2 and a thickness equal to half of the separation (= 0.24 cm). What is the charge on the top plate of this capacitor?
Madhur L.
A parallel-plate capacitor that has no dielectric in the space between the plates has a capacitance C0 and a plate separation d. Two dielectric slabs that have dielectric constants of κ1 and κ2, respectively, are then inserted between the plates as shown in the figure. Each slab has a thickness 1/2d and has area A, the same area as each capacitor plate. When the charge on the positively charged capacitor plate is Q find the following. (Use the following as necessary: A, Q, ε0, d, κ1, and κ2.) (a) the electric field in each dielectric (b) the potential difference between the plates (c) Show that the capacitance of the system after the slabs are inserted is given by [2κ1κ2/(κ1 + κ2)]C0. (Do this on paper. Your instructor may ask you to turn in this work.) (d) Show that [2κ1κ2/(κ1 + κ2)]C0 is the equivalent capacitance of a series combination of two capacitors, each having plates of area A and a gap width equal to d/2. The space between the plates of one is filled with a material that has a dielectric constant equal to κ1 and the space between the plates of the other is filled with a material that has a dielectric constant equal to κ2. (Do this on paper. Your instructor may ask you to turn in this work.)
Part 1) parallel plate capacitor with capacitance C = 1.15 nF is charged s0 that there is voltage difference V = 19.8 V between the plates The capacitor is then disconnected from the power supply and remains disconnected throughout the question: What is the magnitude of the charge on each of the plates? 2.27*104-8 Your last answer was interpreted as follows: 2.27 10 Part 2) With care taken not to discharge the capacitor plates dielectric with dielectric constant # 2.22 is carefully inserted between the plates What are the capacitance; voltage and charge on tne capacitor plates now? 2.553 Your last answer was interpreted as follows: 2.553 8.92 Your last answer was interpreted as follows: 8.92 Q =12.27*10^-8 Your last answer was interpreted as follows: 2.27 10 Part 3) With the dielectric still in the first capacitor; second capacitor with capacitance C2 1.19 nF is connected in series (or parallel, as these are the same with two components) across the first capacitor. The second capacitor is discharged before being connected to the first capacitor What is the magnitude of the potential difference across the first capacitor after the second capacitor is connected?
