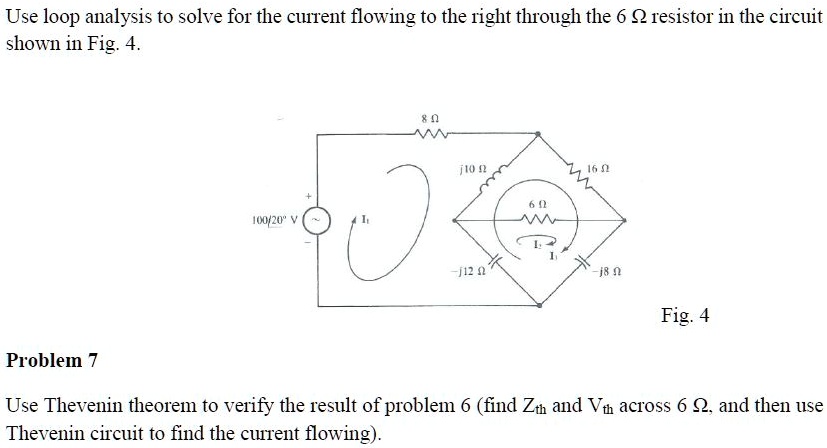

Use loop analysis to solve for the current flowing to the right through the 6 Ω resistor in the

Question

Umar Sohail Qureshi · Answer

For this question, the first part of the question we want to find the unknown currents. The firs

Adi S · Answer

here first of all we will calculate the width across R4 so here we have minus width plus here it

Adi S · Answer

So before going to the problem, let&#x27;s familiar with the rules for the Thevenin Theorem. We will

Adi S · Answer

Let us use the heaven to convert the given circuit. So according to the given circuit, let us ap

Sri K · Answer

From here in this question we can say that let V of T H is representing the load terminal will b

Use loop analysis to solve for the current flowing to the right through the 6 $\Omega$ resistor in the circuit shown in Fig. 4. Problem 7 Use Thevenin theorem to verify the result of problem 6 (find $Z_{th}$ and $V_{th}$ across 6 $\Omega$, and then use Thevenin circuit to find the current flowing).
