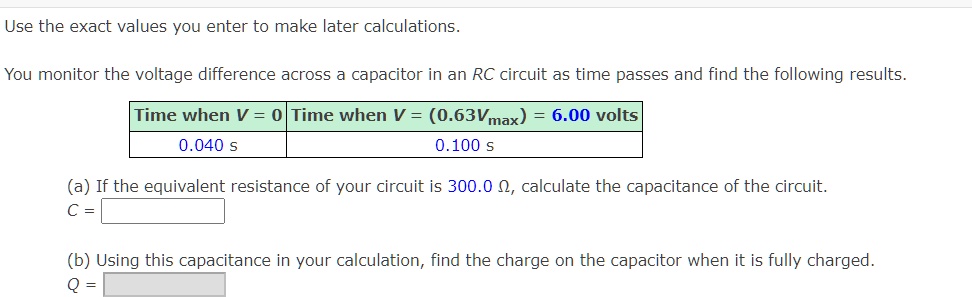

Use the exact values you enter to make later calculations. You monitor the voltage difference across a capacitor in an RC circuit as time passes and find the following results. Time when V = 0 | Time when V = (0.63Vmax) = 6.00 volts 0.040 s | 0.100 s (a) If the equivalent resistance of your circuit is 300.0 ?, calculate the capacitance of the circuit. C = (b) Using this capacitance in your calculation, find the charge on the capacitor when it is fully charged. Q =
Added by Jerome B.
Close
Step 1
Given: Equivalent resistance (R) = 300.0 Ω Maximum charge on the capacitor (Q) = 6.00 V * 6.00 μF = 36.00 μC Using the formula Q = CV, where Q is the charge, C is the capacitance, and V is the voltage: 36.00 μC = C * 6.00 V C = 36.00 μC / 6.00 V C = 6.00 μF Show more…
Show all steps
Your feedback will help us improve your experience
Umar Sohail Qureshi and 50 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider a charging RC circuit, where at t=0, the amount of charge on the capacitor is 0. The circuit is powered by 9.00 V battery. The resistance of the resistor is 187 kΩ, and the time constant of the circuit is 9.22 ms. (a) Find the capacitance of the capacitor (b) Plot the voltage across the resistor and voltage across the capacitor as a function of time (c) Find the amount of charge stored on the capacitor after 15.00 ms.
Timothy J.
Use the exact values you enter to make later calculations. You monitor the voltage difference across a capacitor in an RC circuit as time passes and find the following results. Time when V = 0: 0.040 s. Time when V = (0.63Vmax) = 5.00 volts: 0.080 s. (a) If the equivalent resistance of your circuit is 200.0 ̦, calculate the capacitance of the circuit. C = .2e-3 F (b) Using this capacitance in your calculation, find the charge on the capacitor when it is fully charged. Q = 1.5872e-3 mC
Sri K.
A $15,0 \mathrm{k} \Omega$ resistor and a capacitor are connected in series, and then a $12.0 \mathrm{~V}$ potential difference is suddenly applied across them. The potential difference across the capacitor rises to $5.00 \mathrm{~V}$ in $1.30 \mu \mathrm{s}$ (a) Calculate the time constant of the circuit. (b) Find the capacitance of the capacitor.
