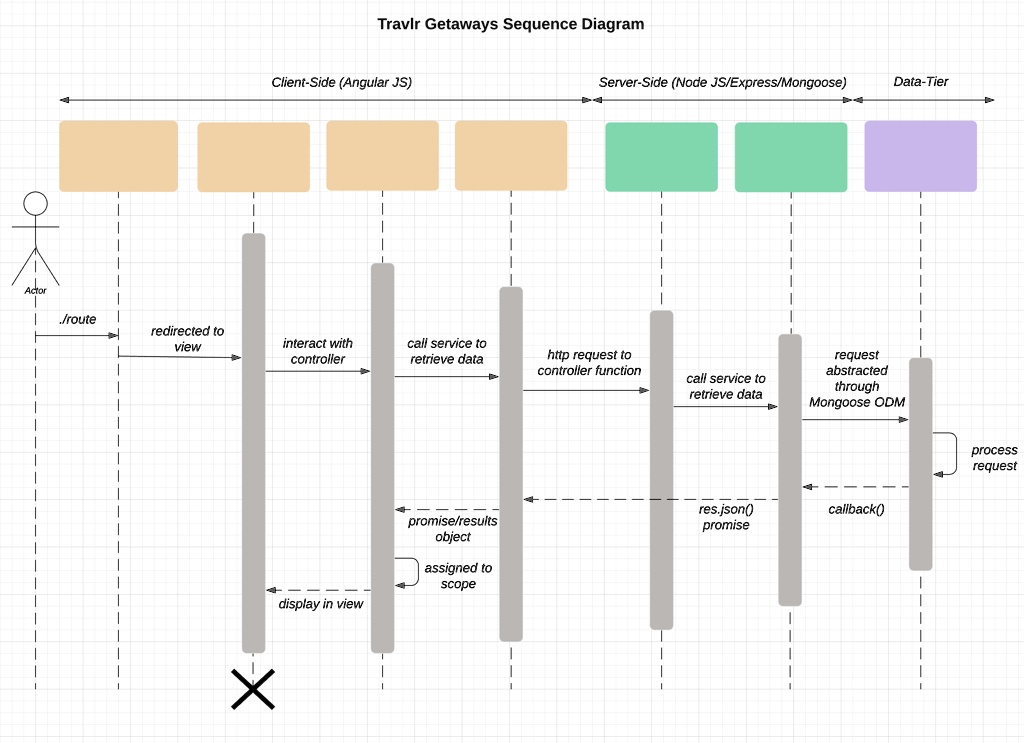

Trav?r Getaways Sequence Diagram Client-Side (Angular JS) Server-Side (Node JS/Express/Mongoose) Data-Tier Actor ./route redirected to view interact with controller call service to retrieve data http request to controller function call service to retrieve data request astracted through Mongoose ODM process request promise/results object res.json() promise callback() assigned to scope display in view X

          Trav?r Getaways Sequence Diagram
Client-Side (Angular JS)
Server-Side (Node JS/Express/Mongoose) Data-Tier
Actor
./route
redirected to
view
interact with
controller
call service to
retrieve data
http request to
controller function
call service to
retrieve data
request
astracted
through
Mongoose ODM
process
request
promise/results
object
res.json()
promise
callback()
assigned to
scope
display in view
X

Trav?r Getaways Sequence Diagram
Client-Side (Angular JS)
Server-Side (Node JS/Express/Mongoose) Data-Tier
Actor
./route
redirected to
view
interact with
controller
call service to
retrieve data
http request to
controller function
call service to
retrieve data
request
astracted
through
Mongoose ODM
process
request
promise/results
object
res.json()
promise
callback()
assigned to
scope
display in view
X

Added by Jeffrey S.

Computer Science and Information Technology

Trishna Knowledge Systems 2018 Edition

Instant Answer

Solved by Expert Muhammad Jan

Step 1

The user interacts with the browser and sends a request to the server. Show more…

Show all steps

Thanks for your feedback!

Use these terms for this: Controller/Model Route Browser/View/Template MongoDB HTTP Client Controller Please note: Labels may be used more than once. Save the completed sequence diagram as an image file (PNG or JPEG) and insert the image in the System Architecture View: Sequence Diagram section of the SDD. Travlr Getaways Sequence Diagram Client-Side (Angular JS) Server-Side (Node JS/Express/Mongoose) Data-Tier Iroute redirected (0 view) interact with controller call service to retrieve data http request to controller function request abstracted through call service to retrieve data Mongoose ODM process request res json promise callback promise results object assigned to scope display in view
