To compute the sagged equilibrium position ( u_E(x) ) given the equation ( Q(x,t) = -g ) and the

Using equation 427 compute the sagged equilibrium position...

Khoobchandra Agrawal and 94 other subject Physics 103 educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Key Concept

Premium Feature

Explore the core concept behind this problem.

Key Concept

Premium Feature

Explore the core concept behind this problem.

Recommended Videos

$we-use-the-equation-given-above-and-use-the-result-that-when-y-is-small-frac1r-sim-fracd2-yd-x2-text$

We use the equation given above and use the result that when $y$ is small $$ \frac{1}{R} \sim \frac{d^{2} y}{d x^{2}} . \text { Thus, } \frac{d^{2} y}{d x^{2}}=\frac{N(x)}{E I} $$ (a) Here $N(x)=N_{0}$ is a constant. Then integration gives, $$ \frac{d y}{d x}=\frac{N_{0} x}{E I}+C_{1} $$ But $\quad\left(\frac{d y}{d x}\right)=0$ for $x=0$, so $C_{1}=0$. Integrating again, $$ y=\frac{N_{0} x^{2}}{2 E I} $$ where we have used $y=0$ for $x=0$ to set the constant of integration at zero. This is the equation of a parabola. The sag of the free end is $$ \lambda=y(x=l)=\frac{N_{0} l^{2}}{2 E I} $$ (b) In this case $N(x)=F(l-x)$ because the load $F$ at the extremity is balanced by a similar force at $F$ directed upward and they constitute a couple. Then $$ \frac{d^{2} y}{d x^{2}}=\frac{F(l-x)}{E I} $$ Integrating, $\frac{d y}{d x}=\frac{F\left(L x-x^{2} / 2\right)}{E I}+C_{1}$ As before $C_{1}=0 .$ Integrating again, using $y=0$ for $x=0$ $$ y=\frac{F\left(\frac{b^{2}}{2}-\frac{x^{3}}{6}\right)}{E I} \text { here } \lambda=\frac{F l^{3}}{3 E I} $$ Here for a square cross section $$ I=\int_{-a / 2}^{a / 2} z^{2} a d z=a^{4} / 12 $$

Solutions to I.E. Irodov's problems in general physics

Physical Fundamentals Of Mdchanics

Elastic Deformations of a Solid Body

consider-a-simply-supported-beam-under-a-uniform-distributed-load-g-as-shown-below-b-a-b-considering-the-following-trial-functions-and-using-the-least-sguare-and-galerkin-methods-a-show-that-98825

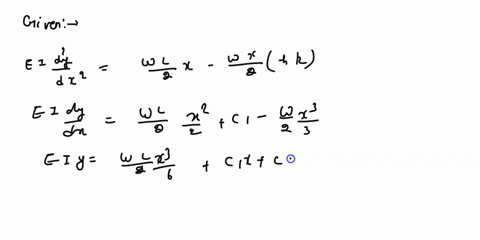

Consider a simply supported beam under a uniform distributed load q as shown below. Considering the following trial functions and using the Least Square and Galerkin methods, a) show that these functions satisfy the boundary conditions, b) determine the elastic curve of the beam, c) the maximum deflection, d) plot the elastic curve from part (b) versus exact solution. N_1(x) = sin(pi*x/L) and N_2(x) = sin(3*pi*x/L) EXACT Solution y = -qx/(24EI) * (L^3 - 2Lx^2 + x^3) y' = -q/(24EI) * (L^3 - 6Lx^2 + 4x^3) delta_c = delta_max = 5qL^4/(384EI) theta_A = theta_B = qL^3/(24EI)

Adi S.

question-5-consider-the-transverse-displacement-of-a-vibrating-beam-of-length-l-whose-ends-are-in-simply-supported-conditions-the-beam-is-set-in-motion-with-initial-velocity-gx-and-initial-d-75072

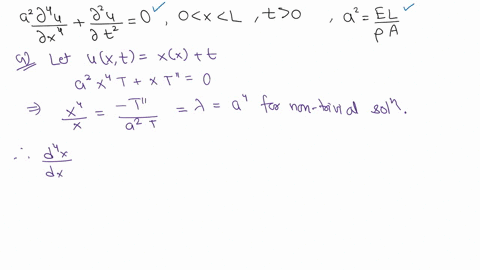

Consider the transverse displacement of a vibrating beam of length L whose ends are in simply-supported conditions: The beam is set in motion with initial velocity g(x) and initial displacement given by f(x), 0 < x < L. The transverse displacement u(x,t) can satisfy the following governing equation, initial and boundary conditions: 0 < x < L, t > 0 where: u(0,t) = 0, u(L,t) = 0, u(x,0) = f(x), u'(x,0) = g(x), 0 < x < L where E is the bending stiffness, p is the density, and A is the cross-sectional area of the beam. Using the method of separation of variables (i.e. let u(x,t) = X(x)T(t)), derive the following ordinary differential equations: d^2X/dx^2 + a^2X = 0 dT/dt + a^2T = 0 where a is a positive real constant. Determine the general solutions of the ordinary differential equations. Determine the fundamental solutions of the partial differential equation and boundary conditions. Determine a formal series expansion for the transverse displacement u(x,t) that also satisfies the initial conditions.

Sri K.

Transcript

00:03 Hi friends, we use the equation given and use the result that when y is small, we can write 1 upon r is called to d2 by up on dx2 and thus d2 y upon dx2 is called to an x upon e .i.

00:51 First part, moment of force is called to n .0 is constant.

01:05 Then integration will give you d .y upon dx is called to n, not x over e .i plus c1.

01:31 But d .y upon dx is zero for x is called to zero.

01:39 So c1 will be zero.

01:41 So above equation you can write y is equal to n -not x square upon 2 e i where we have used y -s -cultu -0 for x -s -cult -0 set the constant of integration to be 0.

02:24 This is the equation of parabola...

Question

Using Equation (4.2.7), compute the sagged equilibrium position uE(x)ifQ(x,t)= −g. The boundary conditions are u(O) = 0 and u(L)=0

Question

Using Equation (4.2.7), compute the sagged equilibrium position uE(x)ifQ(x,t)= −g. The boundary conditions are u(O) = 0 and u(L)=0
