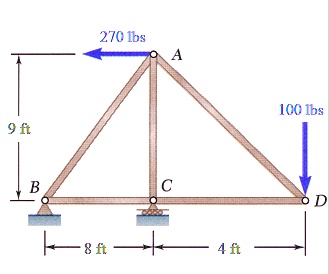

270 lbs A 9 ft B 8 ft 4 ft C 100 lbs D
Added by Luis J.
Close
Step 1
Start by labeling all the joints and members of the truss. In this case, we have joints A, B, C, D, and E, and members AB, BC, BD, CD, and DE. Show more…
Show all steps
Your feedback will help us improve your experience
Christian Dell and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

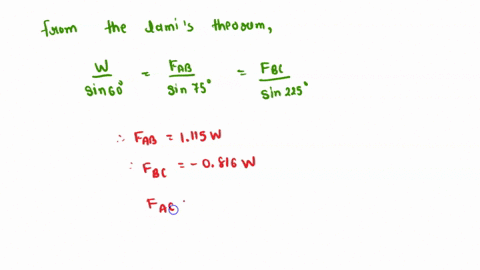

Problem 1 (20 points): Determine the force in each member of the truss loaded by W using Method of Joints. State whether each member is in tension or compression. A 60° 45° B 15° C W
