Q-3) Use the principle of superposition to find the voltage vo in the circuit.

Name: Q-3) Use the principle of superposition to find the voltage vo in the circuit.
Uploaded: 2023-07-26T16:12:44-08:00
Duration: 27 s
Channel: Numerade
Description: Q-3) Use the principle of superposition to find the voltage vo in the circuit.

Question

Supreeta N · Answer

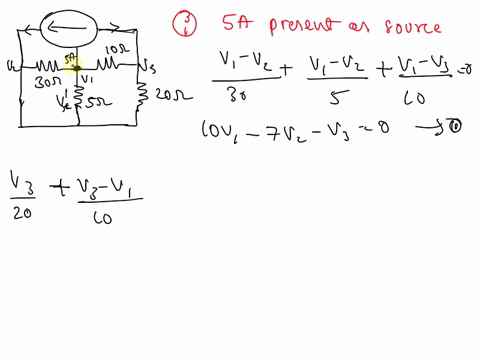

Hello student, here first we have to consider this circuit. So, we can draw this circuit as this

Madhur L · Answer

Hello students here we have to calculate the voltage drop across the 30 ohm resistance. So here

Supreeta N · Answer

I in this question we are given with a circuit where there is a two source one is voltage source

Madhur L · Answer

Hi, from the figure it is clearly seen that we can use current divider rule that is I1 which is

Madhur L · Answer

Hi all in this question using superposition we have to find out output voltage and output curren

Question

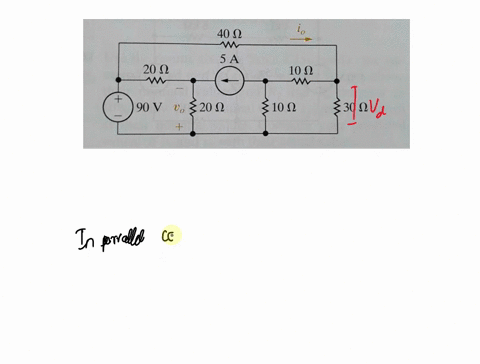

Q-3) Use the principle of superposition to find the voltage $v_o$ in the circuit.
