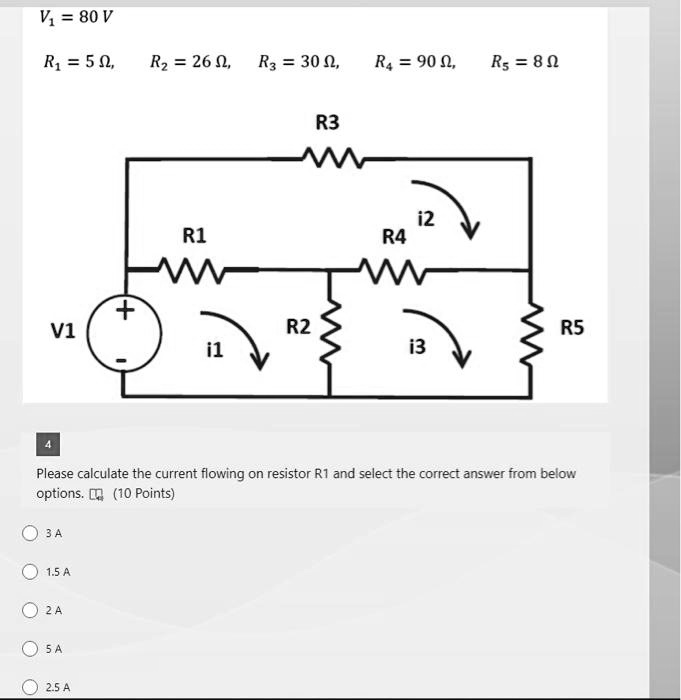

V? = 80 V R? = 5 ?, R? = 26 ?, R? = 30 ?, R? = 90 ?, R? = 8 ? Please calculate the current flowing on resistor R1 and select the correct answer from below options. (10 Points) 3 A 1.5 A 2 A 5 A 2.5 A
Added by Chelsea C.
Close
Step 1
RT = R1 + R2 + R3 + R4 + R5 = 26 + 30 + 90 + 8 + 11 = 165 ohms Show more…
Show all steps
